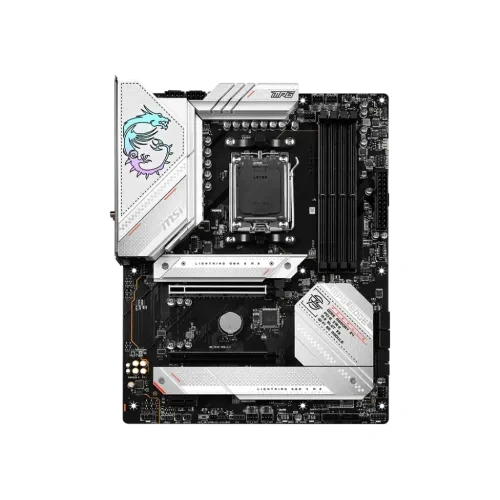

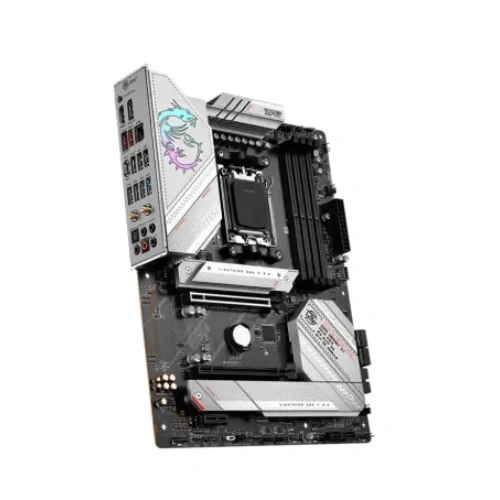

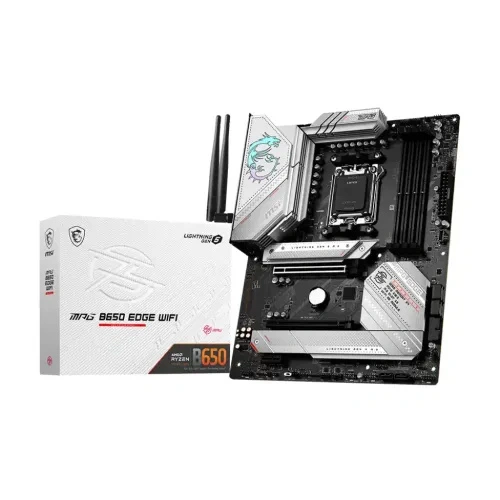

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard (1)

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard

Socket: AM5
Form Factor: ATX
Chipset: AMD B650
Memory Support: 4 x DDR5 DIMM slots, up to 128GB, up to 6400 MHz (OC)
Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
Storage: 6 x SATA III ports, 2 x Lightning Gen 5 M.2 slots
Connectivity: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, HDMI, DisplayPort
Wireless: Wi-Fi 6E, Bluetooth 5.2

Compare

33,200৳

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5*
Chipset	AMD B650
Form Factor	ATX 243.84mmx304.8mm

Expansion Slots

PCI	2x PCI-E x16 slot 1x PCI-E x1 slot , PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)

Memory

Memory Type	DDR 5
Memory Slots	4 DIMMs
Supported Memory	Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz , Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz , Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	128GB

Graphics

Graphics	1x HDMI 1x DisplayPort , Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz Support DP 1.4 HBR3, maximum resolution of 8K 60Hz

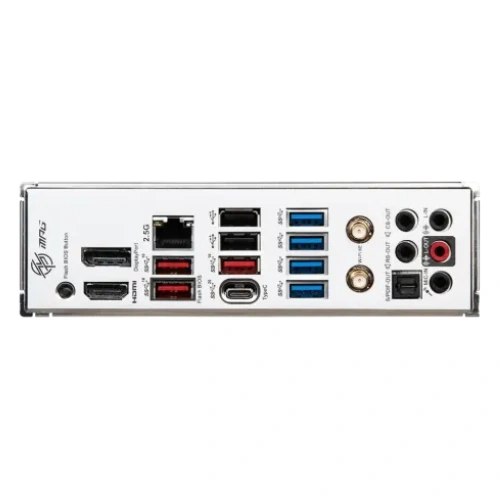

Connector & Ports

HDMI	1x HDMI
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) , 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX , Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax , Supports Bluetooth 5.2
Supported Storage	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices , M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio Jack	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan , 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) , 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C , 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

Others

Special Features	4x EZ Debug LED 1x EZ LED Control switch

Warranty Information

Manufacturing Warranty	03 years

Description

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard

The MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard is a premium choice for gamers, creators, and PC enthusiasts seeking cutting-edge performance and style. Built on the AMD B650 chipset, it offers seamless compatibility with Ryzen AM5 processors, next-gen DDR5 memory, and advanced connectivity features. Its sleek design and robust build quality make it the ideal foundation for a powerful, high-performance PC.

Key Features

1. Optimized for AMD Ryzen AM5 Processors

The MSI MPG B650 EDGE is designed to support the latest AMD Ryzen AM5 processors, unlocking unmatched processing power for gaming, streaming, and multitasking. The AM5 socket ensures future-ready compatibility with next-gen CPUs.

2. Next-Generation DDR5 Memory Support

Harness the speed and efficiency of DDR5 memory technology. With increased bandwidth and faster data transfer rates, DDR5 delivers superior performance for gaming and resource-intensive applications. The motherboard supports overclocking for enthusiasts who want to push their memory to the limit.

3. PCIe 4.0 for High-Speed Performance

Equipped with PCIe 4.0 technology, this motherboard enables ultra-fast data transfer rates for GPUs and storage devices. It includes multiple M.2 slots for NVMe SSDs, ensuring blazing-fast storage speeds for quick system boot-ups, reduced load times, and efficient multitasking.

4. Built-In Wi-Fi 6E and Bluetooth 5.2

Stay ahead with the latest wireless connectivity. Wi-Fi 6E provides faster internet speeds, lower latency, and improved reliability, while Bluetooth 5.2 ensures seamless connections to peripherals and accessories.

5. Advanced Cooling Design

Keep your system cool under pressure with MSI’s advanced cooling solutions, including:

High-performance heatsinks for key components.
Multiple fan headers and water cooling support for customized thermal management.
Smart temperature monitoring to maintain optimal performance during intensive use.

6. High-Quality Audio for Immersive Experiences

The MPG B650 EDGE is equipped with an advanced audio chipset, delivering high-definition sound for gaming, movies, and music. Its support for multi-channel surround sound ensures an immersive audio experience.

7. Durable Design and Premium Build Quality

This motherboard is built to last, featuring:

Steel-reinforced PCIe slots to support heavy GPUs.
Military-grade components for consistent and reliable performance.
A durable 8-layer PCB for enhanced signal integrity and longevity.

8. Customization and Aesthetic Appeal

The MSI MPG B650 EDGE combines functionality with style. Its sleek design includes customizable RGB lighting that can be synced with other components using MSI Mystic Light, allowing you to create a visually stunning PC build.

9. Intuitive BIOS and Software

Fine-tune your system with ease using MSI’s user-friendly BIOS and software tools. Features like Memory Boost, Game Boost, and real-time system monitoring let you optimize your setup for maximum performance.

Why Choose the MSI MPG B650 EDGE WIFI?

The MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard offers the perfect balance of performance, style, and reliability. Whether you’re a gamer looking for smooth frame rates, a creator needing fast rendering speeds, or a PC enthusiast building a high-end rig, this motherboard delivers everything you need.

Key Benefits:

Fully compatible with AMD Ryzen AM5 processors for future-ready builds.
Next-gen DDR5 memory support for lightning-fast performance.
PCIe 4.0 and M.2 slots for superior storage and graphics capabilities.
Wi-Fi 6E and Bluetooth 5.2 for advanced connectivity.
Robust cooling solutions to maintain system stability.

Build Your Dream PC with the MPG B650 EDGE

Whether it’s for competitive gaming, content creation, or everyday productivity, the MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard is the ultimate choice. Its blend of cutting-edge features, premium design, and reliable performance ensures a top-tier PC experience.
