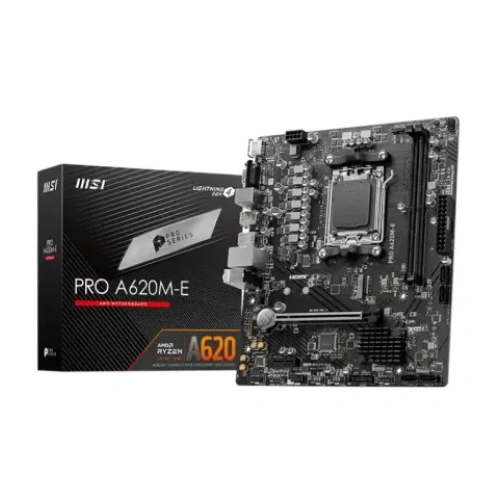

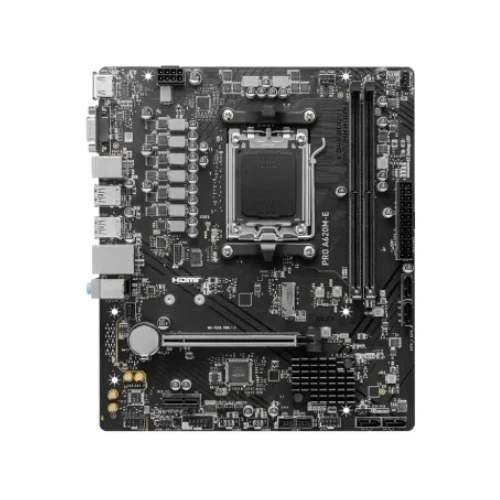

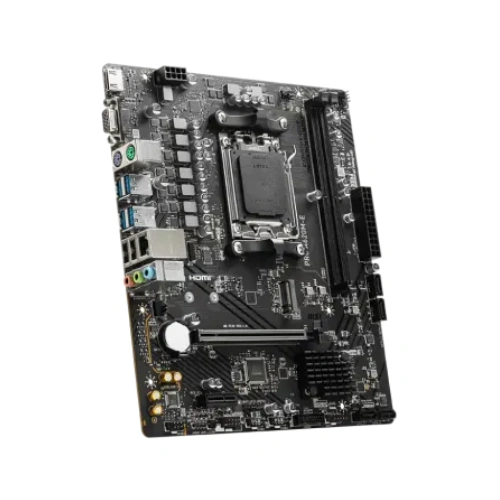

MSI PRO A620M-E AMD AM5 mATX Motherboard

MSI PRO A620M-E AMD AM5 mATX Motherboard

Socket: AM5
Form Factor: mATX
Chipset: AMD A620
Memory Support: 2 x DDR5 DIMM slots, up to 64GB, up to 5200 MHz (OC)
Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Storage: 4 x SATA III ports, 1 x M.2 slot (PCIe 4.0 x4)

Compare

Original price was: 12,000৳ .Current price is: 11,800৳ .

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 8000 / 7000 Series Processors for Socket AM5
Chipset	AMD A620
Form Factor	mATX 211mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCI-E x16 slot 1x PCI-E x1 slot , PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Memory

Memory Type	DDR 5
Memory Slots	2
Supported Memory	Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz , Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz , Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	96GB

Graphics

Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz , 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz

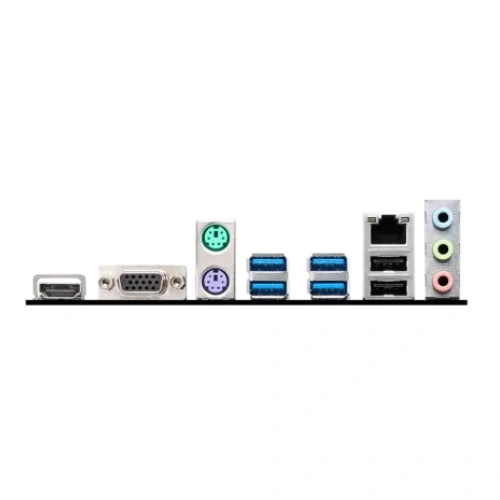

Connector & Ports

HDMI	1x HDMI
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan , 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports , 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

Others

Special Features	4x EZ Debug LED

Warranty Information

Manufacturing Warranty	03 years

Description

MSI PRO A620M-E AMD AM5 mATX Motherboard

The MSI PRO A620M-E AMD AM5 mATX Motherboard offers the perfect combination of performance, reliability, and affordability for professionals, gamers, and PC builders. Designed with AMD’s AM5 platform, this compact micro-ATX motherboard is an ideal choice for creating efficient systems capable of handling everyday tasks, multitasking, and light gaming.

Key Features

1. Designed for AMD Ryzen AM5 Processors

Built to support the latest AMD Ryzen AM5 processors, the MSI PRO A620M-E unlocks modern computing performance. It provides seamless compatibility with next-generation CPUs, delivering the power needed for productivity, gaming, and multitasking.

2. Compact mATX Form Factor

The micro-ATX design makes it perfect for small to mid-sized PC builds, providing all the essential features while saving space. This motherboard is ideal for compact systems without compromising on expandability and performance.

3. PCIe 4.0 for Enhanced Performance

Take advantage of PCIe 4.0 technology for faster graphics and storage performance. With support for high-speed NVMe SSDs, you can experience quicker load times, smoother workflows, and efficient multitasking.

4. Reliable Memory Support

The PRO A620M-E supports DDR5 memory for improved speed, bandwidth, and system responsiveness. Enjoy faster load times and seamless performance for applications and tasks.

5. Robust Connectivity Options

Stay connected with essential connectivity features, including:

USB 3.2 Gen 1 ports for high-speed data transfers.
Gigabit Ethernet for reliable wired network performance.
Multiple display outputs, including HDMI and DisplayPort, to accommodate modern monitors and multi-display setups.

6. Durable Build and High-Quality Components

MSI’s commitment to durability ensures the PRO A620M-E is built to last. Features include:

Solid capacitor design for enhanced stability and longevity.
6-layer PCB construction for better performance and signal reliability.
Military-grade components that maintain stable operation under heavy workloads.

7. Efficient Cooling for Stability

Ensure your system remains cool and stable with MSI’s efficient cooling features, such as optimized fan headers and smart temperature monitoring. These features help maintain consistent performance under demanding tasks.

8. User-Friendly BIOS and Software

MSI’s intuitive BIOS interface and utility tools allow for easy setup, configuration, and system optimization. Whether you’re fine-tuning performance or setting up security features, MSI makes it simple and efficient.

Why Choose the MSI PRO A620M-E?

The MSI PRO A620M-E AMD AM5 mATX Motherboard is the perfect choice for those seeking a dependable platform for productivity and light gaming. Its compact size, essential features, and robust design make it ideal for creating cost-effective yet capable systems.

Key Benefits:

Affordable and efficient solution for AMD Ryzen AM5 builds.
Compact micro-ATX design for space-saving builds.
Support for DDR5 memory and PCIe 4.0 for future-ready performance.
Reliable build quality with military-grade components.
Comprehensive connectivity options for modern setups.

Build Your Efficient PC Today

Whether you’re assembling a home office system, a multimedia station, or a budget-friendly gaming rig, the MSI PRO A620M-E AMD AM5 mATX Motherboard offers the ideal balance of performance, reliability, and value.
