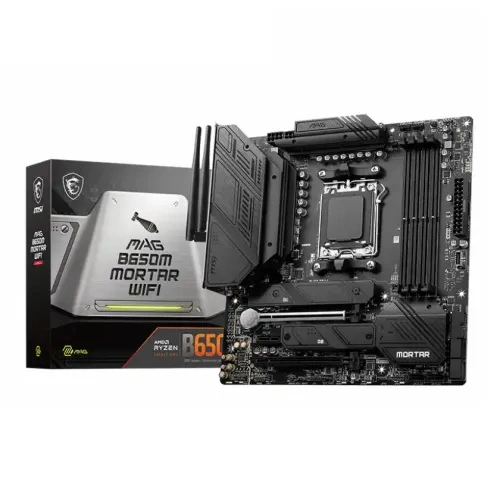

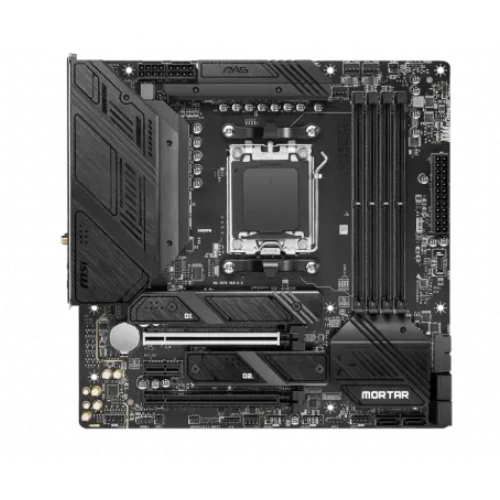

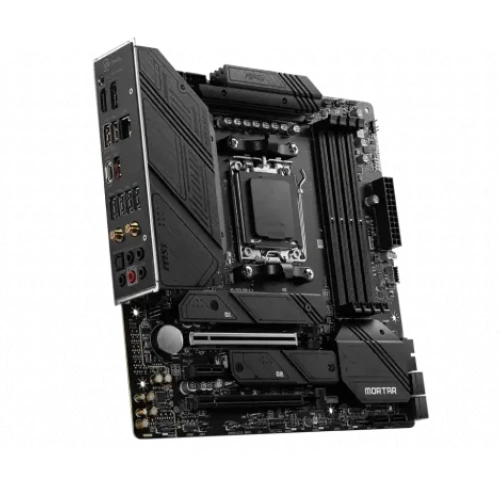

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard (1)

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

Socket: AM5
Form Factor: mATX
Chipset: AMD B650
Memory Support: 4 x DDR5 DIMM slots, up to 128GB, up to 6400 MHz (OC)
Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
Storage: 6 x SATA III ports, 2 x Lightning Gen 5 M.2 slots
Connectivity: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, HDMI, DisplayPort
Wireless: Wi-Fi 6E, Bluetooth 5.2

Compare

Original price was: 29,500৳ .Current price is: 28,800৳ .

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC4080 Codec 7.1-Channel High Performance Audio , Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI	2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot , PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

Memory

Memory Type	DDR 5
Memory Slots	4 DIMMs
Supported Memory	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory	128GB

Graphics

Graphics	1x HDMI 1x DisplayPort , Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz

Connector & Ports

HDMI	1x HDMI

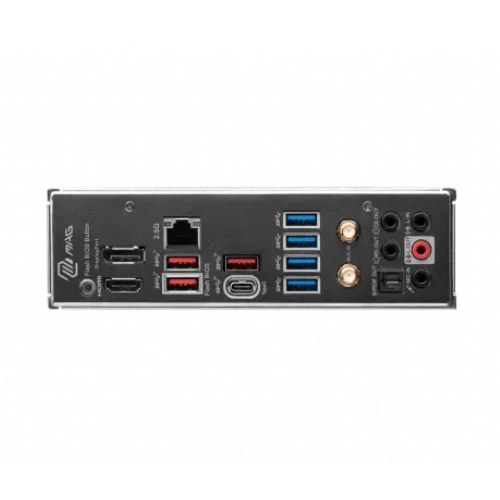

USB (s)	3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) , 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8125B 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX , Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax , Supports Bluetooth 5.2
Supported Storage	2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices , M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Jack	HD Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan , 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) , 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) , 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

Others

Warranty Information

Manufacturing Warranty	03 years

Description

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

The MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard is a compact powerhouse designed to provide exceptional performance and reliability for your gaming and productivity needs. Built with the latest technology, including support for DDR5 memory, AMD Ryzen AM5 processors, and Wi-Fi 6E, this motherboard is perfect for high-performance, space-saving PC builds.

Key Features

1. Ready for AMD Ryzen AM5 Processors

The MSI MAG B650M MORTAR is equipped with the AMD B650 chipset and AM5 socket, making it compatible with the latest Ryzen CPUs. It delivers incredible processing power, whether you’re gaming, streaming, or tackling demanding workloads.

2. DDR5 Memory Support

Take advantage of next-generation memory technology with support for DDR5. Experience faster load times, enhanced multitasking, and improved system responsiveness, all while maintaining excellent stability under heavy use.

3. Compact mATX Form Factor

With its micro-ATX design, this motherboard is ideal for smaller builds without compromising on performance or expandability. It offers a sleek and compact solution for modern PC setups, fitting perfectly into mATX cases.

4. PCIe 4.0 for High-Speed Performance

The MAG B650M MORTAR features PCIe 4.0 slots for GPUs and storage, ensuring lightning-fast data transfer rates. It also includes multiple M.2 slots for NVMe SSDs, enabling ultra-fast storage solutions for quick boot times and seamless multitasking.

5. Wi-Fi 6E and Bluetooth 5.2 Connectivity

Stay connected with the latest in wireless technology. With Wi-Fi 6E, you’ll enjoy faster internet speeds and lower latency, while Bluetooth 5.2 provides reliable and seamless connectivity to your peripherals.

6. Advanced Cooling Solutions

Keep your system cool and stable with MSI’s advanced thermal design, featuring:

Premium heatsinks to dissipate heat efficiently.
Fan headers for flexible cooling setups.
Compatibility with liquid cooling systems for enhanced performance.

7. Durable and Reliable Build

The MAG B650M MORTAR is built to last, offering:

High-quality 6-layer PCB construction for improved performance and durability.
Steel-reinforced PCIe slots for heavy GPUs.
Military-grade components for consistent, stable operation under load.

8. High-Definition Audio and Gaming Enhancements

Immerse yourself in rich, crystal-clear sound with the built-in audio chipset. The motherboard supports surround sound setups, enhancing your gaming and entertainment experience with premium audio clarity.

9. Easy Customization and Optimization

MSI’s user-friendly BIOS and software make it simple to fine-tune your system. With features like Memory Boost, Game Boost, and real-time system monitoring, you can optimize performance to suit your needs.

Why Choose the MSI MAG B650M MORTAR WIFI?

Designed for gamers, creators, and professionals alike, the MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard combines cutting-edge technology with a compact form factor. Its robust performance, advanced connectivity, and durable design make it an excellent choice for high-performance PC builds.

Key Benefits:

Future-ready with AMD Ryzen AM5 processor support.
Compact design perfect for small form factor builds.
Blazing-fast connectivity with Wi-Fi 6E and PCIe 4.0.
Efficient cooling for consistent system stability.
Built to last with premium components and sturdy design.

Build Your Ultimate Compact PC Today

Whether you’re a gamer looking for a powerful yet space-saving setup or a professional seeking a reliable workstation, the MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard is the perfect solution. Experience unparalleled performance, modern features, and a sleek design in one compact package.
