MSI B650M PROJECT ZERO AM5 m-ATX Motherboard (1)

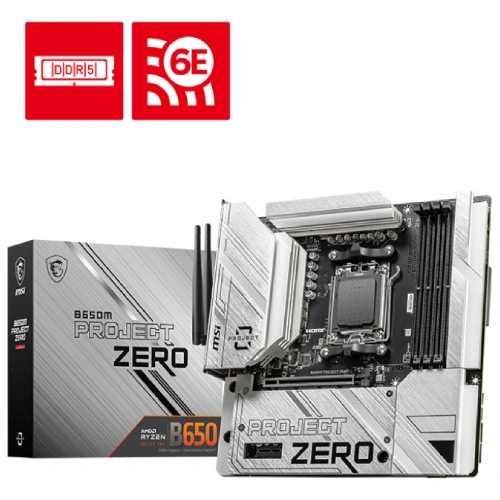

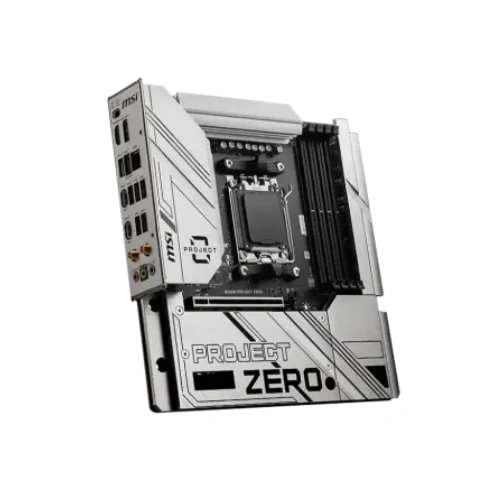

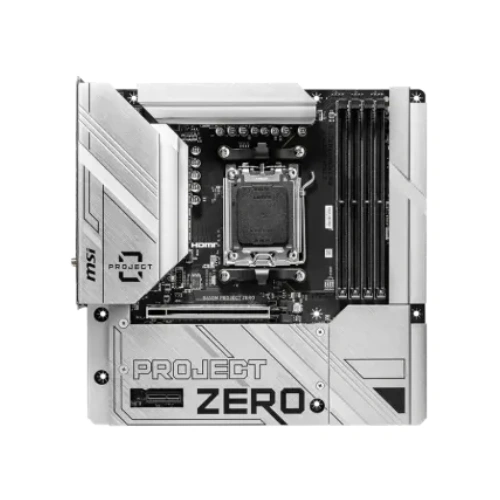

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

Socket: AM5
Form Factor: m-ATX
Chipset: AMD B650
Memory Support: 2 x DDR5 DIMM slots, up to 64GB
Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
Storage: 4 x SATA III ports, 2 x PCIe 4.0 M.2 slots
Connectivity: USB 3.2 Gen 2, USB-C, USB 3.2 Gen 1, HDMI, DisplayPort
Wireless: Wi-Fi 6E, Bluetooth 5.2

Compare

Original price was: 19,500৳ .Current price is: 18,800৳ .

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio , Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI	1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) , 1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor)

Memory

Memory Type	DDR 5
Memory Slots	4
Supported Memory	7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory	128GB

Graphics

Graphics	1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz , 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

Connector & Ports

HDMI	1x HDMI
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) , 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX , Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices , M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Jack	Audio Connectors

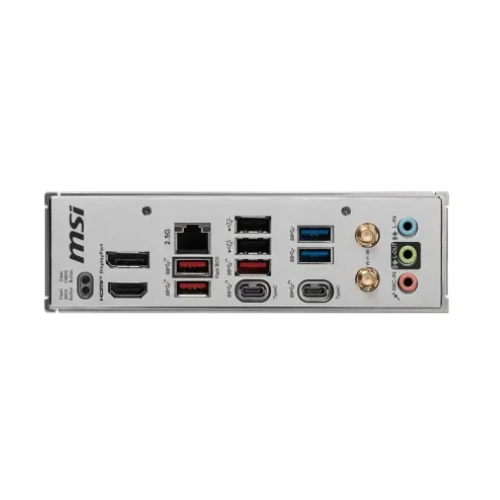

Internal I/O Ports	1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) , 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) , 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports , BACK PANEL PORTS DisplayPort 2.5G LAN , Flash BIOS Button Clear CMOS Button HDMI™ , INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan , USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors , USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2×2 20Gbps (Type-C)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

Others

Warranty Information

Manufacturing Warranty	03 years

Description

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

Unleash the power of your gaming or professional setup with the MSI B650M PROJECT ZERO AM5 m-ATX Motherboard—a cutting-edge motherboard designed to deliver exceptional performance, seamless compatibility, and robust durability. Tailored for the latest AMD Ryzen processors, this motherboard is the perfect foundation for building a high-performance PC that handles gaming, content creation, and multitasking with ease.

Key Features

1. Optimized for AMD Ryzen Processors

The MSI B650M PROJECT ZERO supports the AM5 socket, making it fully compatible with AMD’s next-generation Ryzen processors. Whether you’re running demanding games, streaming, or managing intensive workloads, this motherboard ensures maximum performance and efficiency.

2. m-ATX Form Factor for Compact Builds

With its micro-ATX form factor, this motherboard strikes the perfect balance between size and performance. Ideal for compact builds, it offers excellent expandability while fitting seamlessly into smaller cases, ensuring you can build a powerful PC without sacrificing space.

3. Advanced Connectivity Options

Stay connected with the latest technology. The B650M PROJECT ZERO features:

PCIe 4.0 Support for lightning-fast graphics and storage performance.
Multiple M.2 slots for NVMe SSDs, enabling ultra-fast data transfer speeds and enhanced system responsiveness.
USB 3.2 Gen 2 ports, including USB-C, for high-speed data transfers and versatile device connectivity.
Wi-Fi 6E and Bluetooth 5.2 compatibility for superior wireless performance.

4. Exceptional Cooling Design

Designed to keep your system cool during intense operations, the motherboard features an advanced thermal solution, including:

High-quality heatsinks for key components.
Optimized airflow design.
Compatibility with multiple fan and liquid cooling setups.

5. Robust Build Quality

Engineered with premium components and MSI’s renowned reliability, the B650M PROJECT ZERO offers:

Enhanced PCB durability for long-lasting performance.
Military-grade components for stable and consistent operation.

6. Immersive Gaming Experience

Enjoy unparalleled gaming performance with support for high-refresh-rate monitors and 3D audio technologies. Its built-in Realtek ALC audio chipset delivers crystal-clear sound, ensuring an immersive gaming and entertainment experience.

Why Choose the MSI B650M PROJECT ZERO?

Whether you’re a gamer, creator, or PC enthusiast, the MSI B650M PROJECT ZERO AM5 motherboard is designed to meet your needs. Its compact design, superior performance, and extensive connectivity options make it an excellent choice for building a future-ready PC.

Key Benefits:

Future-proof with support for the latest AMD Ryzen CPUs.
Compact design without compromising functionality.
High-speed connectivity and storage options.
Enhanced cooling for optimal system performance.
Sleek, modern design that complements any build aesthetic.

Build the Ultimate PC Today

The MSI B650M PROJECT ZERO AM5 m-ATX Motherboard is your gateway to a powerful, efficient, and visually stunning PC. Equip your system with this exceptional motherboard and experience performance like never before.
