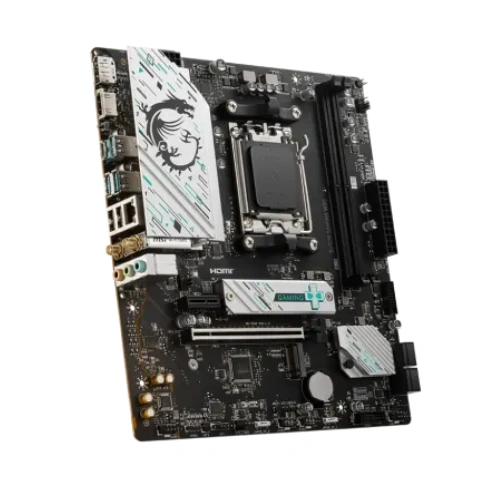

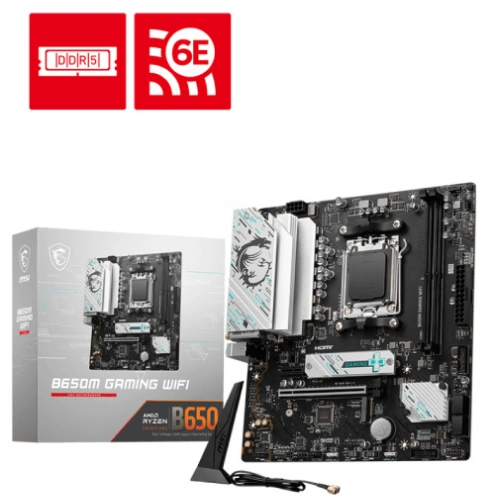

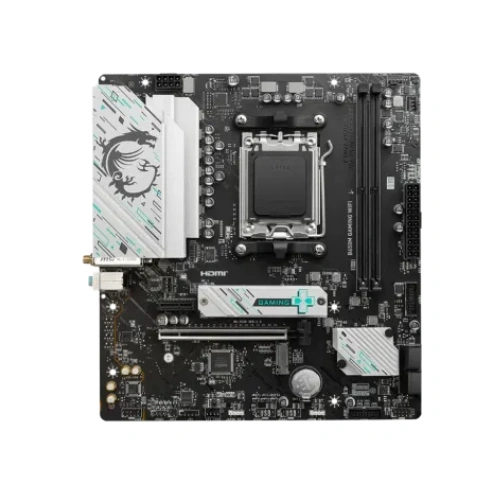

MSI B650M GAMING WIFI AM5 mATX Motherboard

  • Socket: AM5
  • Form Factor: mATX
  • Chipset: AMD B650
  • Memory Slots: 2 x DDR5 DIMM slots, up to 64GB
  • Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
  • Storage: 4 x SATA III ports, 2 x Lightning Gen 4 M.2 slots
  • Connectivity: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, HDMI, DisplayPort
  • Wireless: Wi-Fi 6E, Bluetooth 5.2

Original price was: 19,900৳ .Current price is: 18,900৳ .

Specification

Basic Information

Supported CPU

Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5

Chipset

AMD B650

Form Factor

mATX 226mmx243.84mm

Audio

Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI

1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

,

1x PCI-E x16 slot Supports x16/x1

,

• Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor)

Memory

Memory Type

DDR 5

Memory Slots

2

Supported Memory

7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

,

Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz

,

Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO

Maximum Memory

128GB

Graphics

Graphics

1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*

,

1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz*

Connector & Ports

HDMI

1x HDMI

USB (s)

2x USB 2.0 (Rear) 4x USB 2.0 (Front)

,

3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)

LAN Port (s)

Realtek RTL8125BG 2.5Gbps LAN

Wireless Communication module

AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX

,

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax

,

Supports Bluetooth 5.3

Supported Storage

2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices

,

4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

Internal I/O Ports

1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI)

,

1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB)

,

4x USB 2.0 ports 4x USB 5Gbps Type A ports

,

Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0

,

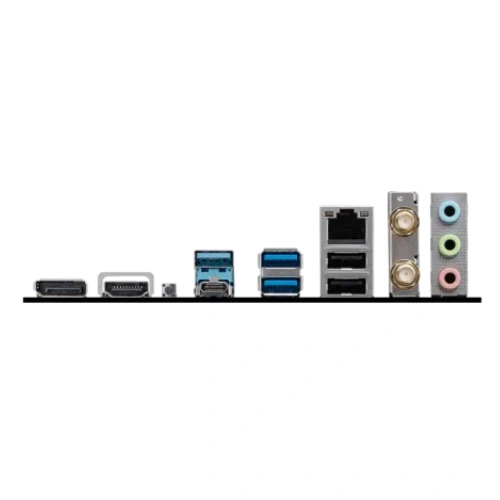

BACK PANEL PORTS DisplayPort HDMI

,

INTERNAL IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR)

,

USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth

TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)

Others

Warranty Information

Manufacturing Warranty

03 years

Description

MSI B650M GAMING WIFI AM5 mATX Motherboard

The MSI B650M GAMING WIFI AM5 mATX Motherboard is a powerful and compact motherboard designed for gamers, creators, and PC enthusiasts who demand cutting-edge performance. Built to support the latest AMD Ryzen™ 7000 Series processors, this motherboard offers exceptional features such as PCIe 5.0, DDR5 memory support, and built-in Wi-Fi 6E for seamless gaming and multitasking. With its micro ATX form factor, it fits perfectly into smaller cases while delivering all the high-end features required for next-gen gaming and productivity.

Key Features

  • AMD AM5 Socket: Fully compatible with the latest AMD Ryzen™ 7000 Series processors, providing incredible performance for gaming, content creation, and productivity.
  • PCIe 5.0 Support: Offers blistering data transfer rates and bandwidth, enabling next-gen GPUs and ultra-fast storage devices to perform at their best.
  • DDR5 Memory Support: Supports up to 64GB of DDR5 memory with speeds up to 6400 MHz (OC), providing superior system performance and responsiveness.
  • Wi-Fi 6E Integration: Experience blazing-fast wireless speeds with Wi-Fi 6E, ensuring smooth online gaming, streaming, and high-speed data transfers.
  • Lightning Gen 4 M.2 Slots: Equipped with multiple high-speed M.2 slots for NVMe SSDs, allowing you to achieve ultra-fast boot times and data access.
  • Enhanced Power Delivery: Features MSI’s Core Boost technology, ensuring efficient and stable power delivery to the CPU, allowing for better overclocking and performance.
  • Premium Thermal Solution: Advanced cooling features including extended heatsinks, thermal pads, and multiple fan headers keep your system cool and stable under heavy loads.
  • Audio Boost Technology: Delivers high-quality audio with premium capacitors, ensuring an immersive gaming and multimedia experience.
  • Comprehensive Connectivity: Equipped with USB 3.2 Gen 2×2 Type-C, HDMI, DisplayPort, and more, this motherboard provides ample options for peripherals, displays, and storage.
  • Durable Construction: Reinforced with MSI’s PCIe Steel Armor, this motherboard offers enhanced durability and support for heavy graphics cards, reducing the risk of GPU sag.

Why Choose the MSI B650M GAMING WIFI Motherboard?

  1. Next-Gen Performance: Built for AMD Ryzen 7000 Series processors, PCIe 5.0, and DDR5 memory support, this motherboard delivers outstanding performance for gaming, content creation, and multitasking.
  2. Compact but Powerful: The micro ATX form factor offers a space-efficient solution without compromising on essential features, making it perfect for compact gaming rigs or small form-factor builds.
  3. Future-Proof Technology: With PCIe 5.0 and DDR5 memory support, this motherboard is designed to keep up with the latest advancements in hardware and deliver years of high-performance computing.
  4. Reliable Connectivity: Wi-Fi 6E and high-speed Ethernet ensure fast, reliable connections, whether you’re gaming online or working on demanding tasks.

Perfect for Gamers and Professionals

Whether you’re building a top-tier gaming rig, a professional workstation, or an all-purpose PC, the MSI B650M GAMING WIFI motherboard offers the performance, features, and durability you need. Its compact design makes it ideal for small builds, while its powerful capabilities ensure that you can handle even the most demanding applications with ease.

Build Your Ultimate PC with MSI

The MSI B650M GAMING WIFI AM5 mATX Motherboard combines cutting-edge features, incredible performance, and premium quality into a compact motherboard designed for demanding users. With the latest AMD Ryzen™ 7000 Series processor support, PCIe 5.0, DDR5, and built-in Wi-Fi 6E, this motherboard is ready to take your gaming and professional builds to the next level.

Order now from Star Computer and unleash the full power of your custom PC build!
