MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard (1)

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard

Socket: AM5
Form Factor: ATX
Chipset: AMD B650
Memory Slots: 4 x DDR5 DIMM slots, up to 128GB
Expansion Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x1
Storage: 4 x SATA III ports, 2 x Lightning Gen 4 M.2 slots
Connectivity: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, HDMI, DisplayPort
Wireless: Wi-Fi 6E, Bluetooth 5.2

Compare

Original price was: 23,500৳ .Current price is: 22,999৳ .

Specification

Basic Information

Supported CPU	Socket AM5 , Supports AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset	AMD B650
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	2x PCI-E x16 slot 1x PCI-E x1 slot , PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory

Memory Type	DDR 5
Memory Slots	4 DIMMs
Supported Memory	Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz , Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz , Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO , • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory	192GB

Graphics

Graphics	1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz AMD MULTI-GPU Support , 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

Connector & Ports

HDMI	1x HDMI

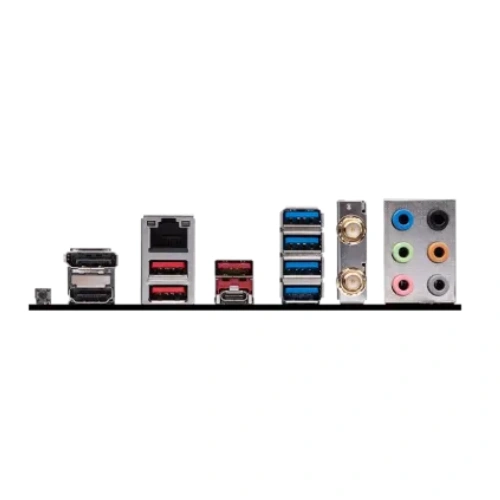

USB (s)	3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) , 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek 8125BG 2.5G LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX , Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands , Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices , M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan , 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) , 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) , 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

Others

Special Features	4x EZ Debug LED

Warranty Information

Manufacturing Warranty	03 years

Description

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard

The MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard is a cutting-edge solution for gamers, creators, and PC enthusiasts seeking next-level performance. Designed to support AMD Ryzen™ 7000 Series processors, this motherboard combines advanced features with exceptional durability. With PCIe 5.0, high-speed DDR5 support, and built-in Wi-Fi 6E, it’s optimized for gaming, multitasking, and heavy workloads. Its sleek design and powerful capabilities make it a perfect foundation for building a high-performance gaming PC or workstation.

Key Features

AMD AM5 Socket: Built for AMD Ryzen™ 7000 Series processors, ensuring incredible performance and next-gen efficiency.
PCIe 5.0 Support: Offers blazing-fast data transfer and bandwidth for GPUs and storage, future-proofing your system for upcoming technologies.
DDR5 Memory Support: Dual-channel DDR5 slots support up to 128GB with speeds of up to 6400 MHz (OC), delivering unprecedented system responsiveness.
Wi-Fi 6E Integration: Enjoy ultra-fast and stable wireless connectivity with the latest Wi-Fi 6E standard, perfect for online gaming and streaming.
Premium Thermal Design: Features extended heatsinks, high-quality thermal pads, and multiple fan headers for optimal heat dissipation during heavy workloads.
Lightning Gen 4 M.2 Slots: Includes multiple M.2 slots with PCIe 4.0 for high-speed NVMe SSDs, ensuring fast boot times and quick application load speeds.
Core Boost Technology: Ensures stable and efficient power delivery to the CPU for enhanced performance and overclocking capabilities.
Immersive Audio: Powered by Audio Boost with premium audio capacitors for crystal-clear sound, creating an enhanced gaming and multimedia experience.
Comprehensive Connectivity: Equipped with USB 3.2 Gen 2×2 Type-C, HDMI, DisplayPort, and multiple USB ports for versatile connectivity options.
Durable Build: Built with high-quality components and reinforced PCIe Steel Armor for durability and support of heavy GPUs.

Why Choose the MSI B650 GAMING PLUS WIFI Motherboard?

Next-Gen Performance: Designed for AMD Ryzen 7000 Series processors, PCIe 5.0, and DDR5, this motherboard provides the ultimate platform for gaming and multitasking.
Future-Proof Technology: With support for the latest standards like PCIe 5.0 and DDR5, you can be confident your system is ready for years to come.
Stable and Efficient: Advanced thermal solutions and power design ensure optimal performance during demanding tasks or extended gaming sessions.
Wireless Convenience: Built-in Wi-Fi 6E delivers fast, stable, and lag-free connections for online gaming and media streaming.

Perfect for Gamers and Professionals

Whether you’re a hardcore gamer or a professional needing a robust workstation, the MSI B650 GAMING PLUS WIFI motherboard is engineered to meet your demands. With features like PCIe 5.0 and DDR5 support, along with high-speed wireless connectivity, it’s built to deliver unmatched performance in every application.

Build Your Ultimate PC with MSI

Take your gaming and productivity to the next level with the MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard. Featuring next-gen connectivity, powerful performance, and exceptional build quality, it’s the perfect choice for any high-performance PC build.

Order now from Star Computer and unleash the power of AMD Ryzen 7000 Series processors!
