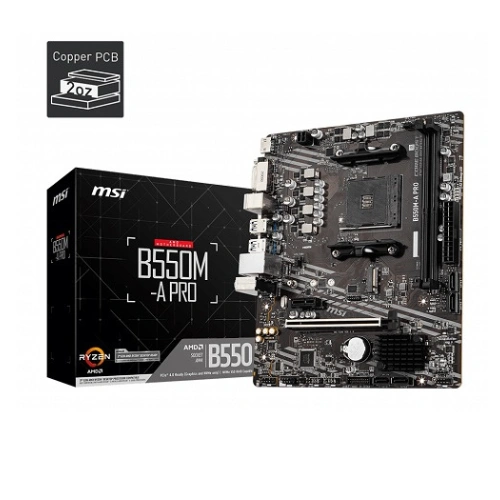

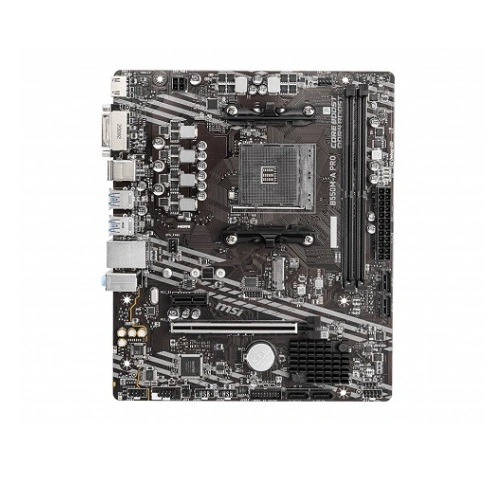

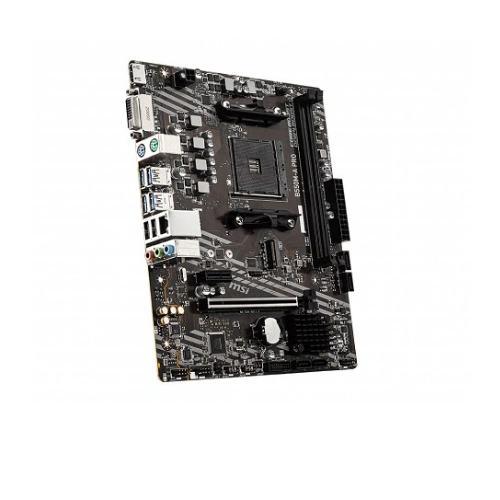

MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard

  • Socket: AM4
  • Form Factor: Micro-ATX
  • Chipset: AMD B550
  • Memory Slots: 2 x DDR4 DIMM slots, up to 128GB
  • Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
  • Storage: 4 x SATA III ports, 1 x Turbo M.2 slot
  • Connectivity: 4 x USB 2.0, 4 x USB 3.2 Gen 1 ports
  • LAN: Realtek RTL8111H Gigabit LAN

Original price was: 12,500৳ .Current price is: 12,000৳ .

Specification

Basic Information

Supported CPU

Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors

Chipset

AMD B550 Chipset

Audio

Realtek ALC892/ALC897 Codec

Expansion Slots

PCI

PCI-E X16 x 1 PCI-E (Gen4 / Gen3)

Memory

Memory Type

DDR4

Memory Slots

1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot

,

The supported specification depends on the installed processor.

Supported Memory

1DPC 1R max speed 4600 MHz

,

1DPC 2R max speed 3866 MHz

,

2x DDR4 memory slots, support up to 64GB 1

,

Dual-channel memory architecture

,

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC.

,

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

,

Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode)

,

Supports un-buffered memory

Maximum Memory

64GB

Graphics

Graphics

1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz

,

1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz

,

Available for the processor with integrated graphics.

,

Graphics specifications may vary depending on the CPU installed.

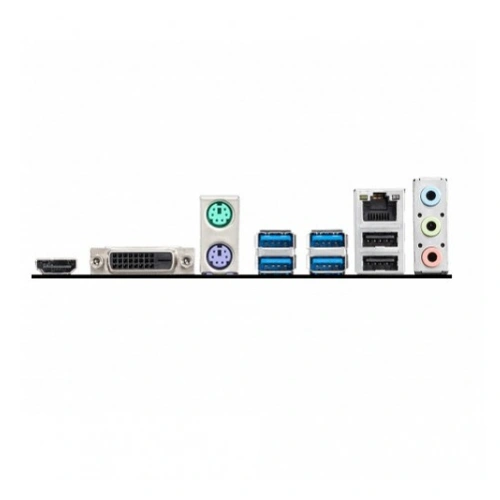

Connector & Ports

HDMI

1 x HDMI

USB (s)

AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps

,

AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

,

connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

LAN Port (s)

1x Realtek RTL8111H Gigabit LAN

Supported Storage

AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor)

,

Supports PCIe 4.0/ 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices

,

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

,

The supported specification depends on the installed processor.

Audio Jack

7.1-Channel High Definition Audio

Internal I/O Ports

1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key)

,

1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors

,

1x Chassis Intrusion connector 1x Clear CMOS jumper

,

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector

TPM (Trusted Platform Module )

1 x TPM module connector

Others

Warranty Information

Manufacturing Warranty

03 years

Description

MSI B550M-A PRO DDR4 AMD AM4 Micro-ATX Motherboard

The MSI B550M-A PRO DDR4 AMD AM4 Micro-ATX Motherboard is a high-performance, feature-rich motherboard designed to deliver unparalleled performance and reliability for modern PC builders. Built to support AMD Ryzen™ 3000 and 5000 Series processors, it provides advanced features such as PCIe 4.0, high-speed DDR4 memory support, and efficient thermal solutions. Its compact Micro-ATX form factor ensures compatibility with smaller cases, making it ideal for gamers, professionals, and creators looking to build a versatile and powerful PC.

Key Features

  • AMD AM4 Socket: Compatible with AMD Ryzen™ 3000 and 5000 Series processors, including Ryzen™ with Radeon™ Graphics, for ultimate flexibility and performance.
  • Micro-ATX Form Factor: Space-saving design without compromising essential features, perfect for compact PC builds.
  • DDR4 Memory Support: Dual-channel DDR4 memory slots support up to 128GB with speeds up to 4400 MHz (OC), ensuring seamless multitasking and performance.
  • PCIe 4.0 Ready: Offers faster data transfer speeds and bandwidth for next-gen GPUs and storage devices, providing future-proof performance.
  • Turbo M.2 Slot: Supports NVMe SSDs for ultra-fast boot times, quick load times, and responsive application performance.
  • Enhanced Power Delivery: Core Boost technology ensures stable power delivery to the CPU for improved performance and overclocking potential.
  • Robust Thermal Design: Features extended heatsinks and multiple fan headers with Full Fan Control, maintaining optimal temperatures under load.
  • High-Quality Audio: Audio Boost technology with premium audio capacitors delivers clear, immersive sound for gaming and entertainment.
  • Comprehensive Connectivity: Includes USB 3.2 Gen 1 ports, HDMI and VGA outputs, and Realtek Gigabit LAN for versatile connectivity and reliable networking.
  • Durable Build Quality: Military-grade components and PCIe Steel Armor ensure long-lasting durability and support for high-performance hardware.

Why Choose the MSI B550M-A PRO Motherboard?

  1. Exceptional Compatibility: Optimized for AMD Ryzen processors, providing top-tier performance for gaming, productivity, and multimedia tasks.
  2. Future-Ready Technology: PCIe 4.0 and Turbo M.2 support ensure your system is equipped for the latest and future advancements in hardware.
  3. Compact and Powerful: Designed for smaller PC builds while retaining the power and features of larger motherboards.
  4. User-Friendly BIOS: MSI Click BIOS 5 offers an intuitive interface for easy system setup, tuning, and overclocking.

Ideal for Gaming and Professional Builds

The MSI B550M-A PRO is designed for users who demand high performance and reliability. Whether you’re building a gaming rig, a workstation for professional applications, or a multimedia PC, this motherboard offers the perfect balance of power and efficiency.

Build Your Dream PC with MSI

Whether you’re an avid gamer, a content creator, or a professional, the MSI B550M-A PRO DDR4 AMD AM4 Micro-ATX Motherboard provides the features, durability, and performance you need to bring your PC to life. With its cutting-edge technology, compact design, and exceptional reliability, this motherboard is the ultimate choice for your next build.

Order now from Star Computer and experience the power of MSI engineering in your custom PC setup!
