MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard (1)

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

Socket: AM4
Form Factor: Micro-ATX
Chipset: AMD B550
Memory Slots: 2 x DDR4 DIMM slots, up to 64GB
Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
Storage: 4 x SATA III ports, 1 x Turbo M.2 slot
Connectivity: 4 x USB 2.0, 6 x USB 3.2 Gen 1 ports

Compare

Original price was: 15,500৳ .Current price is: 14,999৳ .

Specification

Basic Information

Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors*
Chipset	AMD B550
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots

Memory

Memory Type	Dual-channel memory architecture
Memory Slots	4x DDR4 memory slots
Supported Memory	1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ , Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC , Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE , Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory	128GB

Graphics

Graphics	1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz , 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz , 1x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz

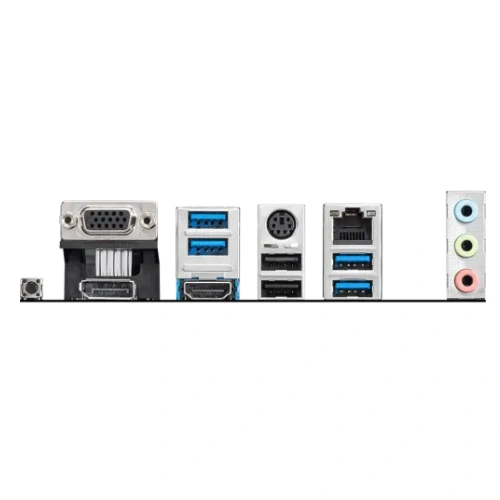

Connector & Ports

HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through , AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel , the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
LAN Port (s)	1x Realtek 8111HN Gigabit LAN controller
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) , M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices , Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) , 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector , 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) , 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper , 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector
TPM (Trusted Platform Module )	1 x TPM module connector

Others

Special Features	Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 , Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. , WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168-

Warranty Information

Manufacturing Warranty	03 years

Description

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

The MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard is a versatile and feature-packed motherboard designed for modern PC builders. With support for AMD Ryzen™ 3rd Gen and 5000 Series processors, this motherboard delivers exceptional performance for gaming, multitasking, and creative workloads. Its compact Micro-ATX form factor is perfect for building efficient and powerful systems in smaller cases, making it an ideal choice for both gamers and professionals.

Key Features

AMD AM4 Socket: Compatible with AMD Ryzen™ 3000 and 5000 Series processors, including Ryzen™ with Radeon™ Graphics, for unmatched performance and flexibility.
Micro-ATX Design: Compact form factor ensures a space-saving build while retaining all essential features for modern computing.
DDR4 Memory Support: Dual-channel DDR4 memory slots support speeds up to 4400 MHz (OC), providing fast and efficient system performance.
PCIe 4.0 Ready: Offers faster data transfer and bandwidth for GPUs and storage, ensuring future-proof performance for demanding applications.
Turbo M.2 Slot: Supports high-speed NVMe SSDs, delivering lightning-fast boot times and data access for improved productivity and gaming.
Core Boost Technology: Ensures stable and precise power delivery to the CPU, enabling better performance and overclocking potential.
Premium Thermal Solution: Features extended heatsinks and multiple fan headers with Full Fan Control, keeping your system cool under load.
High-Quality Audio: Audio Boost technology with premium audio capacitors ensures immersive and clear sound for gaming, movies, and music.
Comprehensive Connectivity: Equipped with USB 3.2 Gen 1 ports, HDMI, DisplayPort, and VGA outputs for versatile display and peripheral options.
Durable Build: Military-grade components and reinforced PCIe Steel Armor slots provide durability and long-lasting reliability.

Why Choose the MSI B550M Pro-VDH Motherboard?

Performance and Compatibility: Designed to harness the power of AMD Ryzen processors, delivering seamless multitasking, smooth gaming, and efficient productivity.
Advanced Features: PCIe 4.0 and Turbo M.2 slots provide cutting-edge performance for GPUs and storage, keeping your system ready for the future.
Compact and Efficient: The Micro-ATX form factor is perfect for smaller builds, offering space efficiency without sacrificing performance.
User-Friendly BIOS: MSI Click BIOS 5 makes system setup and optimization easy, even for beginners.

Perfect for Gaming and Productivity

The MSI B550M Pro-VDH is built to handle demanding gaming sessions, professional workloads, and everyday tasks with ease. Pair it with a powerful AMD Ryzen processor and fast DDR4 memory to experience exceptional performance in every application.

Build Your Dream PC with MSI

Whether you’re a gamer, content creator, or professional, the MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard delivers the performance, durability, and advanced features you need. Its robust design and user-friendly setup make it a top choice for building a reliable and high-performing PC.

Order now from Star Computer and bring your ultimate PC setup to life!
