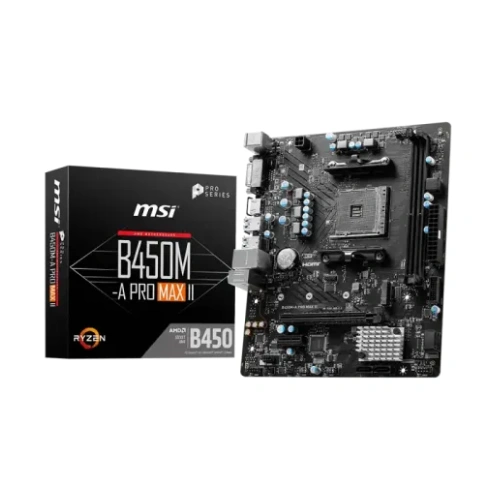

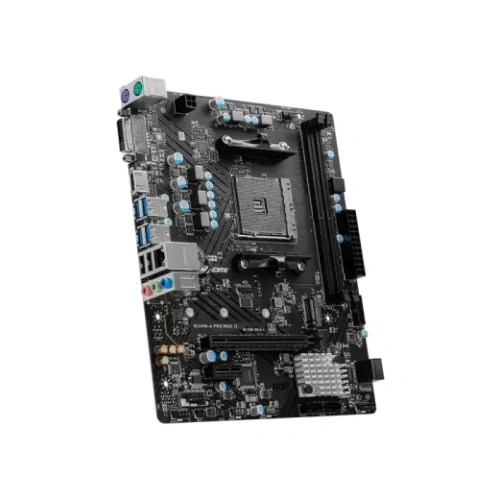

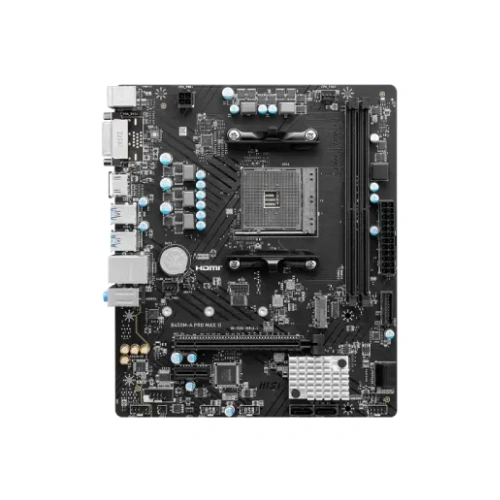

MSI B450M-A PRO MAX II AMD AM4 Motherboard

  • Socket: AM4
  • Form Factor: Micro-ATX
  • Chipset: AMD B450
  • Memory Slots: 2 x DDR4 DIMM slots, up to 64GB
  • Expansion Slots: 1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
  • Storage: 4 x SATA III ports, 1 x Turbo M.2 slot
  • Connectivity: 6 x USB 2.0, 6 x USB 3.2 Gen 1 ports
  • LAN: Realtek RTL8111H Gigabit LAN

Original price was: 9,000৳ .Current price is: 8,500৳ .

Specification

Basic Information

Supported CPU

2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega

,

Graphics desktop processors Socket AM4

,

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series,

Chipset

AMD B450

Form Factor

mATX 200mmx236mm

Audio

Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI

1x PCI-E x16 slot 1x PCI-E x1 slot

,

PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

Memory

Memory Type

DDR4

Memory Slots

2

Supported Memory

Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)

,

Supports Dual-Channel mode Supports non-ECC, UDIMM memory

,

Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory

Maximum Memory

64GB

Graphics

Graphics

1x DVI Support DVI-D, maximum resolution of 1920×1200 60Hz

,

1x HDMI Support HDMITM 1.4, maximum resolution of 4K 24Hz

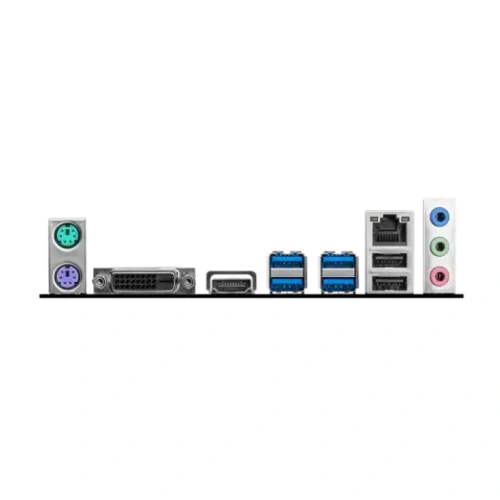

Connector & Ports

HDMI

1x HDMI

USB (s)

2x USB 2.0 (Rear) 4x USB 2.0 (Front)

,

4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)

LAN Port (s)

Realtek 8125 2.5Gbps LAN controller

Supported Storage

1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242

,

devices 4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Internal I/O Ports

1x Com Port (JCOM) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports

,

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan

,

1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD)

TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)

Others

Warranty Information

Manufacturing Warranty

03 years

Description

MSI B450M-A PRO MAX II AMD AM4 Motherboard

The MSI B450M-A PRO MAX II AMD AM4 Motherboard is a high-performance yet affordable Micro-ATX motherboard designed to unlock the potential of AMD Ryzen™ processors. Packed with robust features, this motherboard is perfect for gaming enthusiasts, content creators, and professionals seeking reliable and efficient performance in a compact form factor. Whether you’re building a powerful gaming rig or an all-purpose workstation, the MSI B450M-A PRO MAX II provides the perfect foundation.

Key Features

  • AMD AM4 Socket: Fully compatible with AMD Ryzen™ 1st, 2nd, 3rd Gen processors, including Ryzen™ with Radeon™ Vega Graphics, ensuring versatile CPU support for a range of applications.
  • Micro-ATX Design: Compact form factor that fits effortlessly into smaller cases without sacrificing functionality. Ideal for space-conscious builders.
  • DDR4 Memory Support: Dual-channel DDR4 memory support with speeds up to 4133 MHz (OC), delivering lightning-fast performance for gaming and multitasking.
  • Enhanced Cooling Support: Features extended heatsink design and multiple fan headers with full fan control, ensuring optimal thermal performance.
  • Turbo M.2 Slot: Accelerates storage performance with NVMe SSDs, providing ultra-fast data transfer speeds for gaming, booting, and loading applications.
  • PCIe Steel Armor: Reinforced PCIe slots protect your graphics card and ensure stability during high-performance tasks.
  • Audio Boost Technology: Delivers studio-grade sound quality with high-quality audio capacitors, perfect for immersive gaming and entertainment.
  • Multiple Display Outputs: Equipped with HDMI and DVI-D outputs, offering flexible display options for modern monitors and setups.
  • Reliable Networking: Built-in Realtek RTL8111H Gigabit LAN for stable and high-speed network connections.

Why Choose the MSI B450M-A PRO MAX II?

  1. Performance and Versatility: Supports a wide range of AMD Ryzen processors, making it suitable for both gaming and productivity-focused builds.
  2. Durable Build Quality: Built with premium components and military-grade quality for long-lasting performance.
  3. User-Friendly BIOS: MSI Click BIOS 5 interface offers easy system tuning and customization, ideal for both beginners and experienced builders.
  4. Future-Proof Design: BIOS Flashback support ensures seamless upgrades to future AMD processors without the need for a CPU installation.

Ideal for Gamers and Professionals

With advanced features like Turbo M.2, fast DDR4 memory support, and exceptional audio performance, the MSI B450M-A PRO MAX II is tailored for gamers who demand smooth gameplay and professionals who need efficient multitasking. Build your dream setup with confidence, knowing this motherboard delivers stability and reliability.

Build Your Next PC with Confidence

The MSI B450M-A PRO MAX II AMD AM4 Motherboard combines performance, reliability, and affordability in a single compact package. It’s an excellent choice for building a gaming rig, an office workstation, or a multimedia system. With easy installation, robust compatibility, and exceptional features, this motherboard is built to handle your computing needs with ease.

Order now from Star Computer and take the first step in creating your ultimate PC setup!
