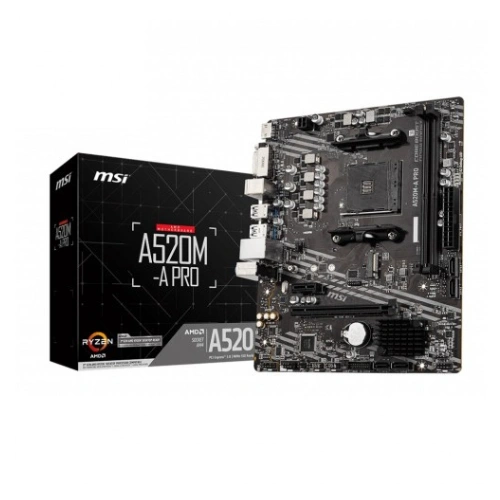

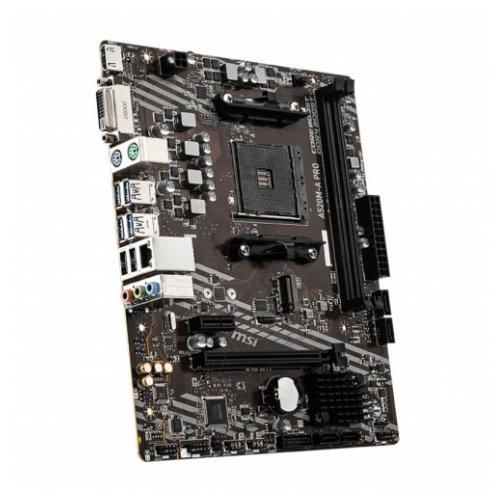

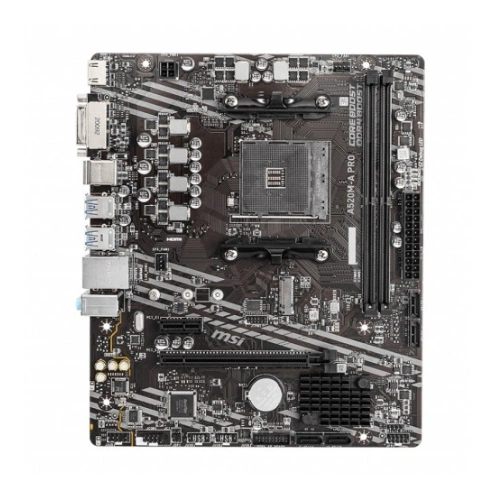

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard (1)

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

Socket: AM4
Form Factor: Micro-ATX
Chipset: AMD A520
Memory Slots: 2 x DDR4 DIMM slots, up to 64GB
Expansion Slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
Storage: 4 x SATA 6Gb/s ports, 1 x M.2 slot
Connectivity: 6 x USB 2.0, 4 x USB 3.2 Gen 1 ports

Compare

Original price was: 8,500৳ .Current price is: 8,000৳ .

Specification

Basic Information

Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B520
Form Factor	Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCIe 3.0 x1 slot 1x PCIe x16 slot

Memory

Memory Type	Dual-channel memory architecture
Memory Slots	2x DDR4 memory slots
Supported Memory	1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz , Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC , Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE , Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) , Supports un-buffered memory
Maximum Memory	64GB

Graphics

Graphics	1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz , 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz

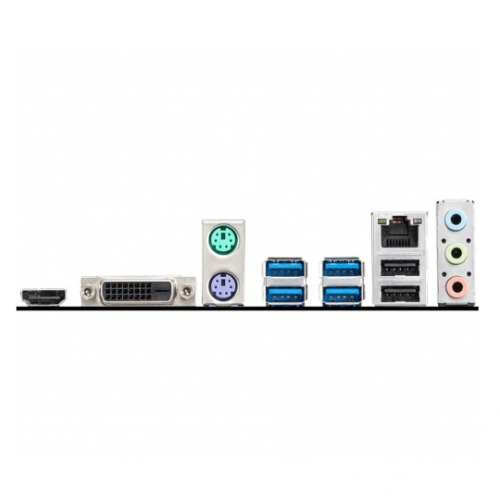

Connector & Ports

HDMI	1x HDMI 2.1 port, maximum resolution of 4096×2160 @60Hz
USB (s)	6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) , AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector , AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111H Gigabit LAN controller
Supported Storage	1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 , AMD A520 Chipset 4x SATA 6Gb/s ports , Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) , 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector , 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) , 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1xTPM module connector

Others

Special Features	RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices , Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Warranty Information

Manufacturing Warranty	03 years

Description

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

The MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard is a compact yet powerful solution designed to meet the needs of modern PC builders and enthusiasts. Featuring AMD’s AM4 socket, this motherboard is compatible with a wide range of AMD Ryzen™ processors, offering exceptional performance for gaming, productivity, and entertainment. Its Micro-ATX form factor makes it an ideal choice for small to medium-sized builds, ensuring versatility without compromising on essential features.

Key Features

AMD AM4 Compatibility: Supports AMD Ryzen™ 3000, 4000 G-Series, and 5000 Series processors for unmatched performance in multitasking and gaming.
Micro-ATX Form Factor: Perfect for compact builds, offering space-saving design without sacrificing connectivity or performance.
Efficient Power Design: Equipped with Core Boost technology, ensuring precise and stable power delivery to the CPU for maximum reliability.
DDR4 Memory Support: Supports dual-channel DDR4 memory with speeds up to 4600+ MHz (OC), providing high-speed performance for demanding applications.
PCIe 3.0 Support: Features a PCIe x16 slot for graphics cards, enabling immersive gaming experiences and professional-grade content creation.
Enhanced Storage Options: Comes with multiple SATA ports and an M.2 slot for ultra-fast NVMe SSDs, delivering lightning-fast storage solutions.
Integrated Audio: High-quality audio capacitors and audio boost technology provide crystal-clear sound for immersive gaming and entertainment.
Comprehensive Connectivity: Includes USB 3.2 Gen 1 ports for fast data transfer, HDMI and VGA outputs for display versatility, and Realtek Gigabit LAN for stable and high-speed networking.
User-Friendly BIOS: The Click BIOS 5 interface makes system tuning and management easier, even for beginners.

Why Choose the MSI A520M-A Pro Motherboard?

Affordable Performance: Combines cost-efficiency with reliable performance, making it an excellent choice for budget-conscious PC builders.
Robust Durability: Built with high-quality components and MSI’s renowned reliability for long-lasting performance.
Future-Proof Design: AM4 socket ensures compatibility with future upgrades within the Ryzen family.
Enhanced Cooling Support: Multiple fan headers with Full Fan Control allow for optimal thermal management.

Ideal for Gaming and Productivity

Whether you’re building a gaming rig or a home office workstation, the MSI A520M-A Pro delivers the performance and features you need. Pair it with a powerful AMD Ryzen processor and fast DDR4 memory to unlock seamless multitasking and stunning visuals.

Build Your Dream PC Today

Take your system to the next level with the MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard. Designed for stability, performance, and versatility, it’s the perfect foundation for any PC build. Whether you’re a gamer, a content creator, or a professional, this motherboard will meet and exceed your expectations.

Order now from Star Computer and build your ultimate PC today!
