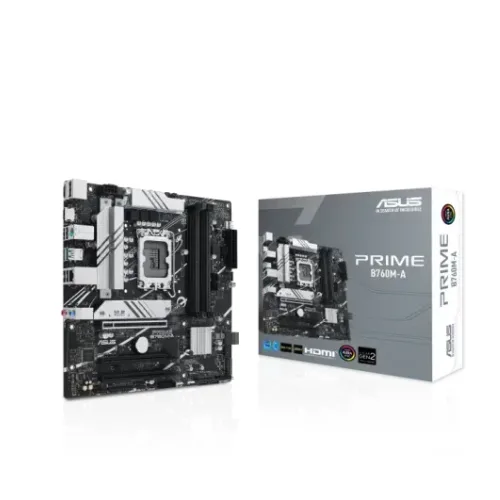

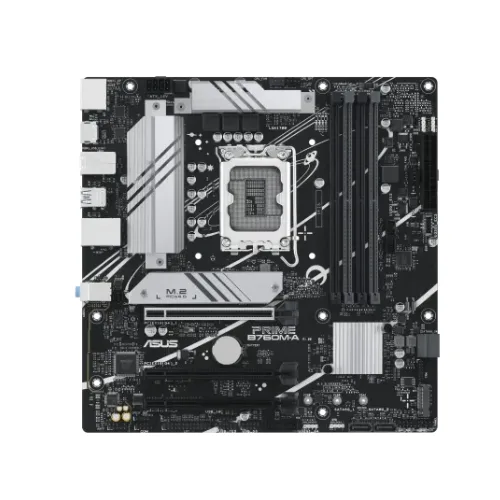

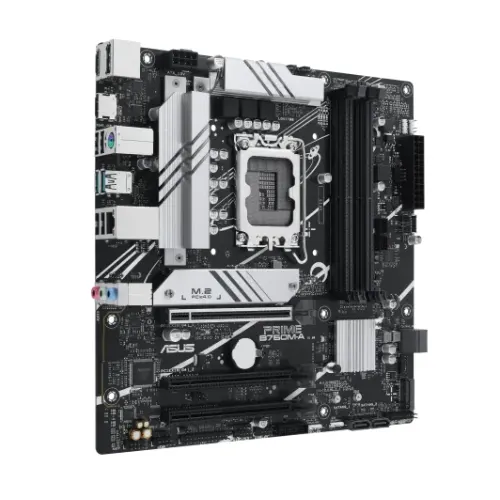

Asus PRIME B760M-A mATX Motherboard

Chipset: Intel B760
CPU Support: 12th and 13th Gen Intel Core processors (LGA1700)
Memory: 4 x DDR5 DIMM slots, up to 128GB, 7200MHz (OC)
Storage: 2 x M.2 slots (NVMe PCIe 4.0), 4 x SATA 6Gbps ports
Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
Networking: Gigabit LAN

Compare

Original price was: 22,500৳ .Current price is: 20,500৳ .

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, , Pentium Gold and Celeron Processors , Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio	– Audio Shielding , – Dedicated audio PCB layers , – Premium audio capacitors , – Supports up to 24-Bit/192 kHz playback / Audio Features , – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking , Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion Slots

PCI	1 x PCIe 4.0 x16 slot , 1 x PCIe 4.0 x16 slot (supports x4 mode) , Intel 13th & 12th Gen Processors. , Intel B760 Chipset

Memory

Memory Type	DDR5
Memory Slots	4 x DIMM
Supported Memory	(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ , 4 x DIMM slots, Max. 128GB, DDR5 7200+ , 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory , Dual Channel Memory Architecture , Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 128GB

Graphics

Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) , 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

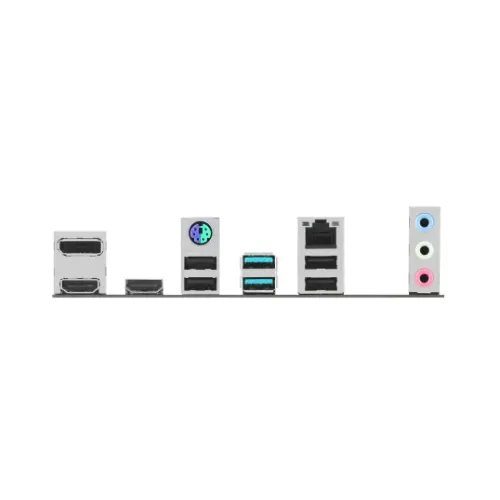

Connector & Ports

HDMI	2 x HDMI port
USB (s)	1 x USB 2.0 header supports 1 additional USB 2.0 port , 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) , 2 x USB 2.0 headers support 4 additional USB 2.0 ports , 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports , 2 x USB 3.2 Gen 2 ports (2 x Type-A ) , 4 x USB 2.0 ports (4 x Type-A) , Front USB (Total 10 ports) , Rear USB (Total 6 ports)
LAN Port (s)	1 x Realtek 2.5Gb Ethernet port
Supported Storage	4 x SATA 6Gb/s ports , Intel 13th & 12th Gen Processors. , M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) , Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Jack	3 x audio jacks
Internal I/O Ports	1 x 20-3 pin System Panel header with Chassis intrude function , 1 x 24-pin Main Power connector , 1 x 4-pin CPU Fan header , 1 x 8-pin +12V Power connector , 1 x Aura RGB header , 1 x Clear CMOS header , 1 x COM Port header , 1 x DisplayPort , 1 x Front Panel Audio header (AAFP) , 1 x LPT header , 1 x PS/2 Keyboard/Mouse combo port , 1 x Realtek 2.5Gb Ethernet port , 1 x S/PDIF Out header , 1 x SPI TPM header (14-1pin) , 1 x USB 2.0 header supports 1 additional USB 2.0 port , 1 x USB 3.2 Gen 1 connector (supports USB Type-C) , 1 x Wi-Fi Module , 2 x 4-pin Chassis Fan headers , 2 x HDMITM ports , 2 x M.2 slots (Key M) , 2 x USB 2.0 headers support 4 additional USB 2.0 ports , 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports , 2 x USB 3.2 Gen 2 ports (2 x Type-A ) , 3 x Addressable Gen 2 headers , 3 x Audio jacks , 4 x SATA 6Gb/s ports , 4 x USB 2.0 ports (4 x Type-A) , Back Panel I/O Ports , Fan and Cooling-related , Internal I/O Connectors , Miscellaneous , Power related , Storage related , USB

Others

Special Features	– Aura RGB header – Addressable Gen 2 headers , – DIGI+ VRM – LANGuard , – M.2 heatsink – VRM heatsink design , – Overvoltage Protection – SafeSlot Core+ , – ProCool , – Q-DIMM – Q-LED Core – Q-Sl , – Stainless-Steel Back I/O , ASUS 5X PROTECTION III , ASUS EZ DIY , ASUS Q-Design , ASUS Thermal Solution , Aura Sync
Bundled Software	– ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode , – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving , – Digi+ VRM – PC Cleaner , AI Suite 3 , Armoury Crate , ASUS CPU-Z , ASUS Exclusive Software , ASUS EZ DIY , Norton Deluxe (60 Days Free Trial) WinRAR , UEFI BIOS

Warranty Information

Description

Asus PRIME B760M-A mATX Motherboard – Balance of Performance and Versatility for Modern PC Builds

The Asus PRIME B760M-A mATX Motherboard is the ideal foundation for building a reliable and high-performance PC. Designed with advanced features and versatile connectivity, this motherboard is perfect for gaming, productivity, and content creation. Supporting 12th and 13th Gen Intel processors, DDR5 memory, and PCIe 4.0, the Asus PRIME B760M-A offers a seamless computing experience in a compact mATX form factor.

Whether you’re building a gaming rig, an efficient workstation, or a powerful home PC, the Asus PRIME B760M-A delivers exceptional value, stability, and performance.

Key Features of Asus PRIME B760M-A mATX Motherboard

12th and 13th Gen Intel Processor Support:
Compatible with the latest Intel Core, Pentium Gold, and Celeron processors, ensuring robust performance for gaming, multitasking, and creative workloads.
DDR5 Memory Support:
Features 4 DIMM slots, supporting up to 128GB of DDR5 memory with speeds of up to 7200MHz (OC). Experience faster data transfer rates, improved energy efficiency, and smoother performance.
PCIe 4.0 Expansion Slots:
Offers PCIe 4.0 x16 for high-speed connectivity with modern GPUs, delivering enhanced gaming graphics and productivity performance.
Dual M.2 Slots for Ultra-Fast Storage:
Supports M.2 NVMe SSDs for lightning-fast boot times and reduced application load times, ensuring an optimized system performance.
Comprehensive Cooling Solutions:
Equipped with multiple fan headers, hybrid controls, and an optimized thermal design to maintain system stability and protect components during intensive tasks.
Robust Connectivity:
- USB Ports: Multiple USB 3.2 Gen 1 and USB 2.0 ports for connecting peripherals.
- Networking: Gigabit Ethernet for fast and stable internet connectivity.
- Audio Jacks: Delivers high-quality audio for immersive gaming and entertainment experiences.
User-Friendly BIOS:
Features ASUS UEFI BIOS with an intuitive interface, allowing you to easily tweak and customize your system for optimal performance.
Durable and Stylish Design:
Built with ASUS’ renowned quality and attention to detail, the PRIME B760M-A offers a sleek design that complements modern PC builds.

Why Choose Asus PRIME B760M-A mATX Motherboard?

Future-Ready Performance: Designed to leverage the latest technologies, including PCIe 4.0 and DDR5 memory.
Compact Form Factor: The Micro-ATX design saves space while providing full-scale features for versatile builds.
Efficient Cooling: Ensures stable performance under heavy loads with advanced cooling options.
Reliable Build Quality: ASUS’ commitment to quality ensures longevity and consistent performance.
Customizable Options: Easily configure settings with the user-friendly BIOS and Fan Xpert 4 utility.

Applications:

Gaming PCs: Pair with the latest GPUs and CPUs for exceptional gaming performance.
Workstations: Build an efficient workstation for productivity and creative tasks.
Home PCs: Create a reliable and future-proof PC for everyday use and entertainment.

Buy the Asus PRIME B760M-A mATX Motherboard at Star Computer

Available now at Star Computer, the Asus PRIME B760M-A mATX Motherboard combines cutting-edge features and reliable performance at an excellent value. Whether you’re a gamer, professional, or PC enthusiast, this motherboard is the perfect choice for your next build.

Upgrade your PC today with the Asus PRIME B760M-A mATX Motherboard – Order now and experience the future of computing!
