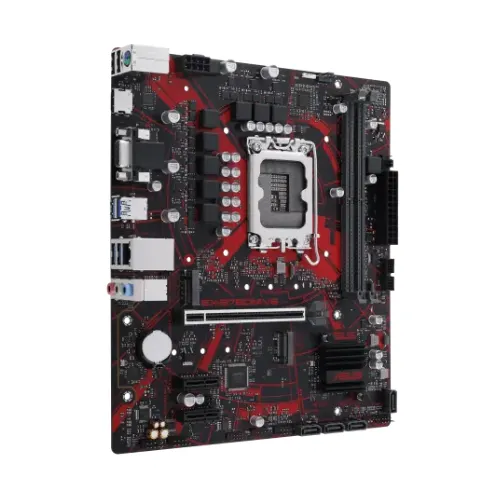

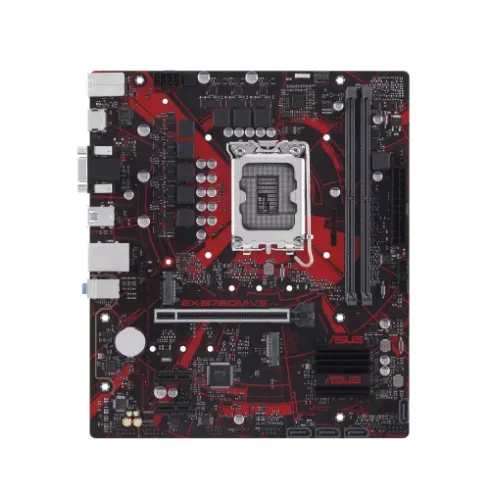

ASUS EX-B760M-V5 D4 mATX Motherboard

Chipset: Intel B760
CPU Support: 12th and 13th Gen Intel Core processors (LGA1700)
Memory: 4 x DDR4 DIMM slots, up to 128GB, 5333MHz (OC)
Storage: 1 x M.2 slot (NVMe), 4 x SATA 6Gbps ports
Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
Networking: Gigabit LAN

Compare

Original price was: 18,000৳ .Current price is: 16,300৳ .

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors , Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Audio	– Audio Shielding , – Dedicated audio PCB layers , – Premium audio capacitors , – Supports up to 24-Bit/192 kHz playback / Audio Features , – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking , Realtek 7.1 Surround Sound High Definition Audio CODEC*

Expansion Slots

PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots

Memory

Memory Type	DDR4
Memory Slots	2x DIMM
Supported Memory	5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* , Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB

Graphics

Graphics	Supports 4K@60Hz as specified in HDMI 2.1.

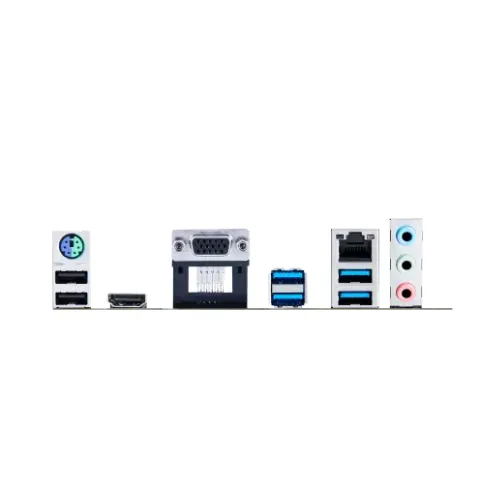

Connector & Ports

HDMI	1 x HDMI port
USB (s)	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports , Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports)
LAN Port (s)	1 x Realtek 2.5Gb Ethernet port
Supported Storage	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s port , Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen)
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Jack	3x Audio jacks
Internal I/O Ports	1 x 10-1 pin System Panel header , 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB , 1 x Clear CMOS header , 1 x Front Panel Audio header (AAFP) , 1 x Speaker header , 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous , Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related , Internal I/O Connectors

Others

Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O , ASUS EZ DIY – ProCool , ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core , Non-stop Action – Lightning Boot , Non-stop Challenger – ASUS iCafe labs certified , Non-stop Durability – Luminous anti-moisture coating – USBGuard

Warranty Information

Description

ASUS EX-B760M-V5 D4 mATX Motherboard – Durable Performance for Gaming and Productivity

The ASUS EX-B760M-V5 D4 mATX Motherboard is built to deliver exceptional performance and reliability, making it an excellent choice for gamers, professionals, and PC enthusiasts. Designed with military-grade durability and advanced features, this motherboard is ready to handle modern computing demands. Featuring support for 12th and 13th Gen Intel Core processors, DDR4 memory, and PCIe 4.0, the ASUS EX-B760M-V5 combines power, efficiency, and long-term dependability in a compact Micro-ATX form factor.

Key Features of ASUS EX-B760M-V5 D4 mATX Motherboard

Intel 12th and 13th Gen CPU Support:
Engineered with the Intel B760 chipset, this motherboard provides seamless compatibility with the latest Intel Core, Pentium Gold, and Celeron processors for high-performance computing.
Enhanced DDR4 Memory Support:
Comes with dual-channel support for up to 128GB of DDR4 RAM with speeds up to 5333MHz (OC). Enjoy faster application loading, multitasking, and gaming performance.
Durable Military-Grade Components:
Built with premium-quality components that ensure stability and longevity, the EX-B760M-V5 is designed for extended use under demanding conditions.
PCIe 4.0 Expansion Slots:
Includes PCIe 4.0 x16 for high-speed connectivity with the latest GPUs, offering faster data transfer and optimal graphics performance for gaming and creative workloads.
High-Speed Storage Options:
Features M.2 slots for NVMe SSDs, enabling ultra-fast storage solutions for reduced boot times and faster application performance.
Comprehensive Cooling Solutions:
Advanced thermal design with multiple fan headers ensures efficient cooling to maintain system stability during high workloads.
Robust Connectivity:
- Multiple USB 3.2 Gen 1 and USB 2.0 ports for seamless peripheral connections.
- High-speed Gigabit Ethernet for reliable wired networking.
- Audio jacks with premium sound support for an immersive gaming and entertainment experience.
Compact mATX Design:
The Micro-ATX form factor is perfect for space-saving builds without compromising on features or performance.

Why Choose ASUS EX-B760M-V5 D4 mATX Motherboard?

Performance and Reliability: Offers robust features for smooth operation in gaming, content creation, and multitasking.
Future-Ready Design: Supports the latest processors and PCIe 4.0 technology, ensuring your system stays up-to-date.
Durability: Military-grade components provide exceptional reliability, making it ideal for long-term use.
Value for Money: Combines advanced features with affordability for an unbeatable performance-to-price ratio.

Perfect for Any Build

Whether you’re building a reliable gaming rig, a versatile workstation, or a home PC, the ASUS EX-B760M-V5 D4 mATX Motherboard offers exceptional performance and reliability. Its durable design and advanced features make it the perfect choice for users seeking stability and speed in a compact form factor.

Buy ASUS EX-B760M-V5 D4 mATX Motherboard at Star Computer

Available now at Star Computer, your trusted destination for high-quality PC components. Build your next gaming or productivity system with the ASUS EX-B760M-V5 and experience unmatched performance, durability, and value.

Order the ASUS EX-B760M-V5 D4 mATX Motherboard today and take your PC to the next level!
