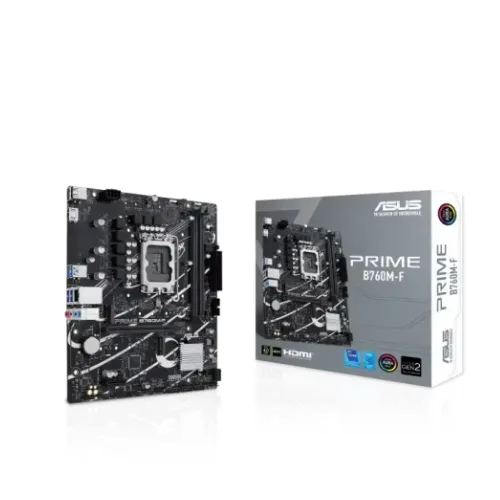

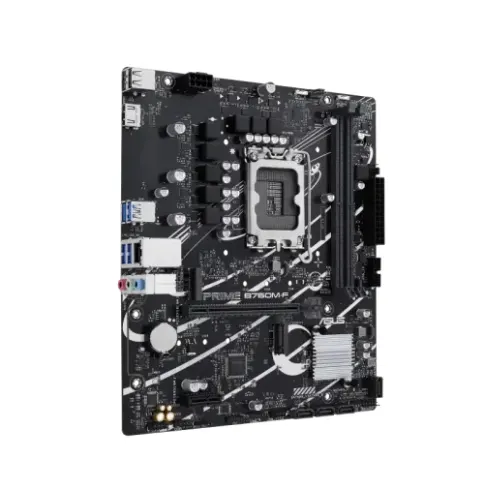

Asus PRIME B760M-F mATX Motherboard

Chipset: Intel B760
CPU Support: 12th and 13th Gen Intel Core processors (LGA1700)
Memory: 4 x DDR5 DIMM slots, up to 128GB, 7200MHz (OC)
Storage: 2 x M.2 slots (NVMe PCIe 4.0), 4 x SATA 6Gbps ports
Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
Networking: Gigabit LAN

Compare

Original price was: 16,500৳ .Current price is: 15,000৳ .

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, , Pentium Gold and Celeron Processors , Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio	– Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers , – Supports up to 24-Bit/192 kHz playback , – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking , Audio Features , Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion Slots

PCI	1 x PCIe 4.0 x1 slot , 1 x PCIe 4.0 x16 slot , Intel B760 Chipset , Intel Core Processors (14th & 13th & 12th Gen

Memory

Memory Type	DDR 5
Memory Slots	2 x DIMM
Supported Memory	/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 , 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC) , Dual Channel Memory Architecture , Non-ECC, Un-buffered Memory* , Supports Intel® Extreme Memory Profile (XMP) memory module
Maximum Memory	Max. 96GB

Graphics

Graphics	** Supports 4K@30Hz as specified in HDMI 1.4.

Connector & Ports

HDMI	1x HDMI port
USB (s)	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports , 2 x USB 2.0 headers support 3 additional USB 2.0 ports , 2 x USB 2.0 ports (2 x Type-A) , 4 x USB 5Gbps ports (4 x Type-A) , Front USB (Total 5 ports) , Rear USB (Total 6 ports)
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	4 x SATA 6Gb/s ports , Intel Core Processors (14th & 13th & 12th Gen)* , M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset , M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) , Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Jack	3 x audio jacks

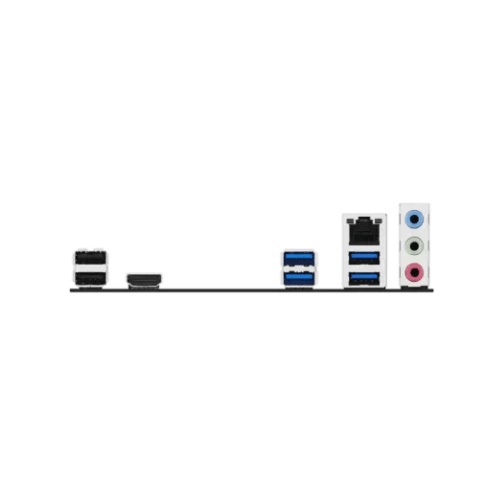

Internal I/O Ports	1 x 10-1 pin System Panel header , 1 x 24-pin Main Power connector , 1 x 4-pin CPU Fan header , 1 x 8-pin +12V Power connector , 1 x Clear CMOS header , 1 x COM Port header , 1 x Front panel audio header (F_AUDIO) , 1 x Realtek 1Gb Ethernet port , 1 x S/PDIF Out header , 1 x Speaker header , 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports , 2 x 4-pin Chassis Fan headers , 2 x Addressable Gen 2 headers , 2 x M.2 slots (Key M) , 2 x USB 2.0 headers support 3 additional USB 2.0 ports , 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port , 3 x Audio jacks , 4 x SATA 6Gb/s ports , 4 x USB 5Gbps ports (4 x Type-A) , Back Panel I/O Ports , Fan and Cooling related , Internal I/O Connectors , Miscellaneous , Power related , Storage related , USB
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)

Others

Special Features	– Addressable Gen 2 headers , – Aluminum heatsink design , – DIGI+ VRM – LANGuard – Overvoltage protection – SafeSlot Core – Stainless-steel back I/O , – ProCool , – Q-DIMM – Q-LED Core – Q-Slot , ASUS 5X PROTECTION III , ASUS EZ DIY , ASUS Q-Design , ASUS Thermal Solution , Aura Sync
Bundled Software	– ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode , – Aura Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancelation , – Digi+ VRM – PC Cleaner , AI Suite 3 , ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY , ASUS Exclusive Software Armoury Crate

Warranty Information

Description

Asus PRIME B760M-F mATX Motherboard – Unmatched Performance and Flexibility for Modern Builds

The Asus PRIME B760M-F mATX Motherboard offers a perfect balance of performance, durability, and cutting-edge features, making it an ideal choice for gamers, professionals, and PC enthusiasts. Built for the latest Intel processors, including the 12th and 13th Gen Intel Core series, this motherboard delivers seamless performance across a wide range of applications. With support for DDR5 memory, PCIe 4.0, and dual M.2 slots, the Asus PRIME B760M-F is a versatile and reliable foundation for high-performance PC builds in a compact mATX form factor.

Key Features of Asus PRIME B760M-F mATX Motherboard

Supports 12th and 13th Gen Intel Processors:
The Intel B760 chipset allows you to build your system around the latest Intel Core, Pentium Gold, and Celeron processors, ensuring optimal performance for gaming, multitasking, and creative applications.
DDR5 Memory Support:
Equipped with 4 DIMM slots, this motherboard supports up to 128GB of DDR5 memory with speeds of up to 7200MHz (OC). DDR5 delivers faster data transfer rates, improved energy efficiency, and higher bandwidth, allowing you to get the most out of your system for demanding tasks.
PCIe 4.0 Expansion Slot:
The Asus PRIME B760M-F includes a PCIe 4.0 x16 slot, ensuring compatibility with the latest GPUs. This delivers exceptional gaming graphics and high-performance data transfer, making it perfect for gaming and intensive applications.
Dual M.2 Slots for NVMe SSDs:
Enjoy ultra-fast boot times and quick application load speeds with dual M.2 slots supporting NVMe SSDs. PCIe 4.0 support ensures you benefit from the highest storage speeds available.
Comprehensive Cooling Solutions:
With multiple fan headers and an advanced thermal design, the Asus PRIME B760M-F ensures stable performance even during high-intensity tasks. Efficient cooling is built into the motherboard for superior protection of your components.
Versatile Connectivity:
- USB Ports: Multiple USB 3.2 Gen 1 and USB 2.0 ports for smooth and efficient peripheral connectivity.
- Gigabit LAN: Stable and high-speed wired internet connections for gaming, streaming, and downloading.
- High-Quality Audio: Realtek 7.1-channel high-definition audio for a rich and immersive sound experience in gaming and entertainment.
User-Friendly BIOS and Software:
With the intuitive ASUS UEFI BIOS, fine-tuning your system’s settings for optimal performance is easier than ever. ASUS’ Fan Xpert 4 allows you to control cooling based on your system’s temperature.
Durable Build Quality:
ASUS is known for building motherboards with military-grade components. The PRIME B760M-F is engineered for long-term durability and ensures reliable performance under demanding workloads.

Why Choose the Asus PRIME B760M-F mATX Motherboard?

Future-Proof Performance: Featuring the latest technologies, including DDR5 memory and PCIe 4.0, it’s designed to handle the needs of modern applications and gaming.
Compact Yet Powerful: The Micro-ATX form factor allows you to save space while retaining all the key features for high-end builds.
Efficient Cooling: With advanced cooling systems, this motherboard ensures your components stay safe and cool during heavy usage.
Quality and Reliability: ASUS is a trusted brand known for its quality and performance, making this motherboard a solid choice for any PC build.
Ease of Customization: The user-friendly BIOS and fan control software make it easy to customize your system for optimal performance.

Perfect for a Wide Range of Builds

Whether you’re building a high-performance gaming PC, a versatile workstation, or a robust home PC, the Asus PRIME B760M-F mATX Motherboard offers the features and performance you need. Its support for the latest Intel processors, DDR5 memory, and PCIe 4.0 ensures that your system will be fast, responsive, and future-proof for years to come.

Buy the Asus PRIME B760M-F mATX Motherboard at Star Computer

Available now at Star Computer, your trusted source for premium PC components. Build your next-generation PC with the Asus PRIME B760M-F mATX Motherboard, designed for peak performance and reliability.

Order your Asus PRIME B760M-F mATX Motherboard today and unlock the full potential of your next PC build!
