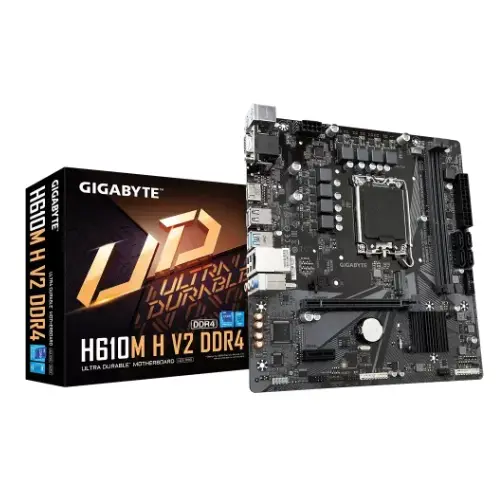

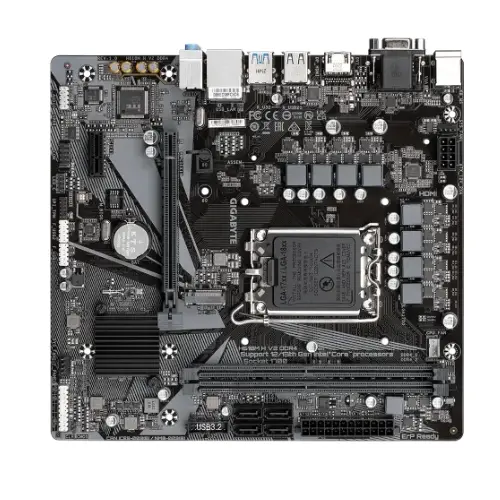

GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard

GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard

  • Model: H610M H V2 DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2 x DDR4 up to 64 GB 3200MHz
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: Realtek GbE LAN
Compare

Original price was: 11,500৳ .Current price is: 10,800৳ .

Specification
Description
Review

Specification

Basic Information

Supported CPU

LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset

Intel H610 Express Chipset
BIOS

1 x 256 Mbit flash

,

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

,

Use of licensed AMI UEFI BIOS
Form Factor

Micro ATX Form Factor; 23.0cm x 21.5cm
Audio

2/4/5.1/7.1-channel

,

High Definition Audio

,

Realtek Audio CODEC

Expansion Slots

PCI

Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

,

CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Memory

Memory Type

DDR4
Memory Slots

2 x DDR DIMM sockets
Supported Memory

3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules

,

Dual Channel Memory Architecture

,

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

,

Support for Extreme Memory Profile (XMP) memory modules

,

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory

Up to 64 GB (32 GB single DIMM capacity) of system memory

Graphics

Graphics

** Support native HDMI 2.1 TMDS compatible ports

,

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

,

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3.

,

Integrated Graphics Processor-Intel HD Graphics support:

Connector & Ports

HDMI

1 x HDMI 2.0 port
USB (s)

4 x USB 2.0/1.1 ports on the back panel

,

Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

,

Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)

Intel GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage

4 x SATA 6Gb/s connectors

,

Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
Audio Jack

3 x audio jacks
Internal I/O Ports

1 x 24-pin ATX main power connector

,

1 x 8-pin ATX 12V power connector

,

1 x Clear CMOS jumper

,

1 x CPU fan header

,

1 x front panel audio header

,

1 x front panel header

,

1 x M.2 Socket 3 connector

,

1 x RGB LED strip header

,

1 x serial port header

,

1 x USB 3.2 Gen 1 header

,

2 x system fan headers

,

2 x USB 2.0/1.1 headers

,

4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features

* * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

,

@BIOS

,

Ambient LED

,

EasyTune

,

Smart Backup

,

Support for APP Center

,

Support for Q-Flash

,

Support for Xpress Install

,

System Information Viewer
Bundled Software

Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty

03 years

Description

GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard: A Powerful Foundation for Your PC Build

The GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard is engineered to deliver outstanding performance, reliability, and versatility, making it the perfect choice for your next desktop computer build. Designed with cutting-edge technology and a compact Micro ATX form factor, this motherboard combines functionality and value to cater to a wide range of computing needs, from gaming enthusiasts to home and office users.

Key Features

  1. Intel H610 Chipset: Optimized for the latest 12th and 13th Gen Intel Core processors, the H610 chipset ensures seamless compatibility and enhanced performance for multitasking, gaming, and productivity applications.
  2. DDR4 Memory Support: With support for up to 64GB of high-speed DDR4 RAM, this motherboard ensures smooth and efficient performance, enabling faster data access and reduced load times for demanding software and games.
  3. Micro ATX Form Factor: Its compact design fits perfectly in smaller cases, making it ideal for space-saving builds without compromising on performance or features.
  4. Comprehensive Connectivity: The GIGABYTE H610M H V2 features multiple USB 3.2 and 2.0 ports, an HDMI output, and a VGA port, offering versatile options for connecting peripherals, displays, and other devices.
  5. PCIe 4.0 Support: Enjoy the benefits of next-gen PCIe 4.0 technology for ultra-fast data transfer speeds, perfect for high-performance graphics cards and NVMe SSDs.
  6. Enhanced Audio Experience: Equipped with high-quality audio capacitors and an audio noise guard, this motherboard delivers clear, immersive sound for an exceptional multimedia experience.
  7. Reliable Durability: Built with GIGABYTE’s Ultra Durable technology, the H610M H V2 features solid capacitors, anti-sulfur resistors, and surge protection to ensure long-lasting performance and stability.
  8. Advanced BIOS and Utility Software: The user-friendly UEFI BIOS and GIGABYTE’s intuitive software tools make it easy to fine-tune your system for optimal performance.

Why Choose the GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard?

  • Performance-Driven Design: Whether you’re a gamer, content creator, or office user, this motherboard offers the performance and features you need to excel.
  • Future-Ready Compatibility: With support for Intel’s latest processors and technologies, this motherboard keeps your system ready for upgrades and future demands.
  • Ease of Installation: The Micro ATX size and comprehensive manuals make installation simple, even for beginners.

Perfect for Custom PC Builds

The GIGABYTE H610M H V2 is a top-tier choice for anyone looking to build a reliable, high-performing PC without breaking the bank. Pair it with a powerful CPU, ample memory, and cutting-edge storage for a setup that excels in gaming, streaming, or professional tasks.

SEO Keywords

  • GIGABYTE H610M H V2 Motherboard
  • Micro ATX DDR4 Motherboard
  • Intel H610 Chipset
  • 12th/13th Gen Intel Core Support
  • PCIe 4.0 Motherboard
  • Reliable Motherboard for PC Build
  • Affordable High-Performance Motherboard

Conclusion

Step into the future of computing with the GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard. Its blend of advanced features, robust build quality, and unmatched value makes it a standout choice for your custom PC. Elevate your system with the GIGABYTE H610M H V2 and experience uncompromised performance today.
