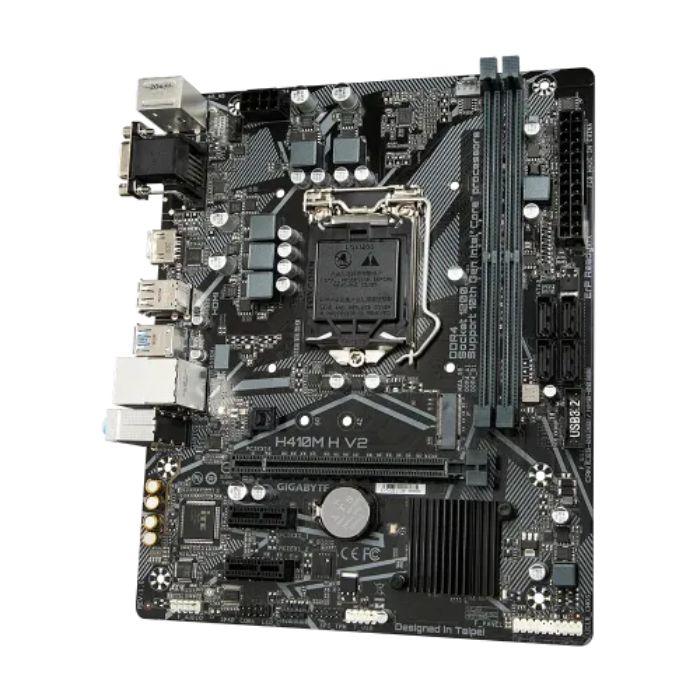

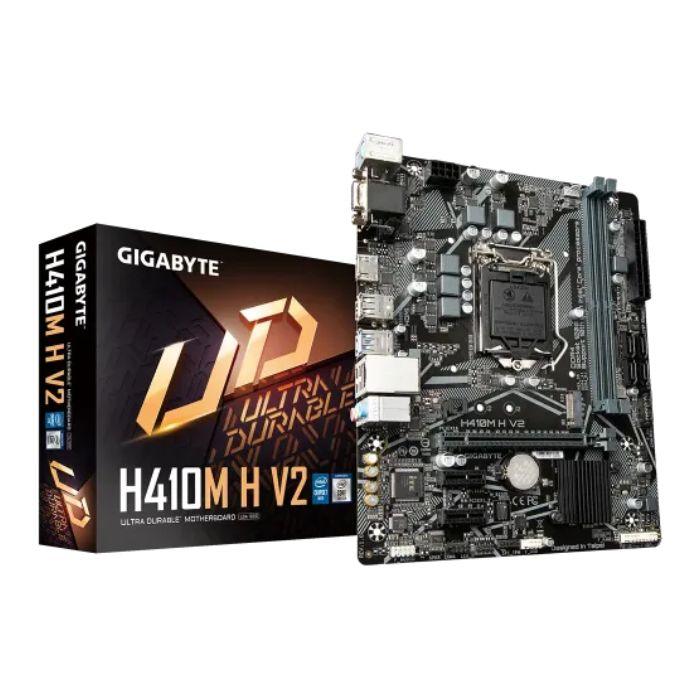

GIGABYTE H410M H V2 Micro ATX Motherboard (10th & 11th Gen)

  • Model: H410M H V2
  • Supported CPU: 10th Gen Intel Core Processors
  • Supported RAM: DDR4, 2 DIMMs, up to 64 GB
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: Intel GbE LAN with cFosSpeed

Original price was: 9,500৳ .Current price is: 8,700৳ .

Specification

Basic Information

Supported CPU

processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in

,

Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5

,

the LGA1200 package

Chipset

Intel H470 Express Chipset

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor: 22.6cm x 18.5cm

Audio

2/4/5.1/7.1-channel

,

High Definition Audio

,

Realtek Audio CODEC

Expansion Slots

PCI

(The PCI Express slots conform to PCI Express 3.0 standard.)

,

1 x PCI Express x16 slot, running at x16

,

2 x PCI Express x1 slots

,

Supports up to ASPM L1.2 power management protocols.

Memory

Memory Type

DDR4

Memory Slots

2 x DIMM

Supported Memory

Dual Channel Memory Architecture

,

Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules

,

Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules

,

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

,

Support for Extreme Memory Profile (XMP) memory modules

,

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Maximum Memory

64GB (32 GB single DIMM capacity)

Graphics

Graphics

* Support for HDMI 1.4 version and HDCP 2.3.

,

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

,

1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz

,

Integrated Graphics Processor-Intel HD Graphics support:

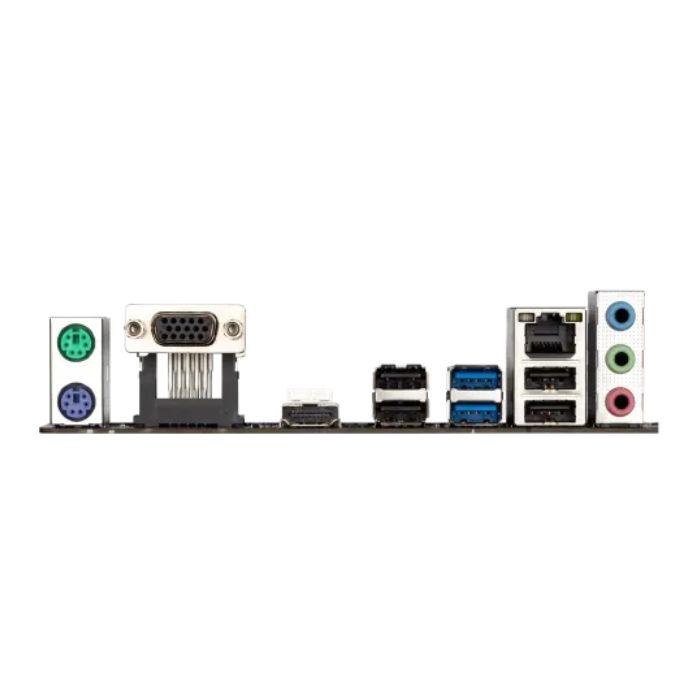

Connector & Ports

HDMI

1 x HDMI port

USB (s)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

,

Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

Intel GbE LAN chip (1 Gbit/100 Mbit)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

,

4 x SATA 6Gb/s connectors /Intel Optane Memory Ready

,

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

Internal I/O Ports

1 x 24-pin ATX main power connector

,

1 x 8-pin ATX 12V power connector

,

1 x Clear CMOS jumper

,

1 x CPU fan header

,

1 x front panel audio header

,

1 x front panel header

,

1 x RGB LED strip header

,

1 x serial port header

,

1 x system fan header

,

1 x USB 2.0/1.1 header

,

1 x USB 3.2 Gen 1 header

,

4 x SATA 6Gb/s connectors

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features

* * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

,

@BIOS

,

Ambient LED

,

EasyTune

,

Fast Boot

,

Game Boost

,

ON/OFF Charge

,

Smart Backup

,

Support for APP Center

,

Support for Q-Flash

,

Support for Xpress Install

,

System Information Viewer

Bundled Software

Norton Internet Security (OEM version) cFosSpeed

Warranty Information

Manufacturing Warranty

03 years

Description

GIGABYTE H410M H V2 Micro ATX Motherboard – Reliable Performance and Expandability for Your Build

The GIGABYTE H410M H V2 Micro ATX Motherboard is a powerful and versatile motherboard designed to meet the demands of modern computing. Whether you’re building a home office PC, a gaming rig, or a compact multimedia center, this motherboard offers the reliability, performance, and features needed to support a wide range of applications. With its Intel H410 chipset, the H410M H V2 is optimized for 10th generation Intel processors, delivering seamless performance and exceptional expandability.

Key Features:

  • Intel LGA 1200 Socket: Designed for 10th generation Intel Core processors, the H410M H V2 provides a solid foundation for your system. With support for Intel’s latest CPU architecture, you can experience improved performance and efficiency for all your computing tasks.
  • Dual Channel DDR4 Memory Support: The motherboard supports up to 64GB of DDR4 memory with speeds of up to 2933 MHz. This dual-channel memory configuration enhances data transfer rates and improves overall system responsiveness, making it ideal for multitasking and demanding applications.
  • M.2 and SATA Storage Options: With an M.2 slot for NVMe SSDs and multiple SATA III ports, the H410M H V2 provides flexible storage options for your system. You can enjoy lightning-fast boot times and rapid file transfers with an M.2 SSD while having plenty of room for additional storage drives.
  • Integrated Graphics Support: The motherboard features integrated graphics support for Intel processors, enabling you to take advantage of high-definition visuals without the need for a dedicated graphics card. This is perfect for casual gaming, video playback, and everyday tasks.
  • Multiple Connectivity Options: The GIGABYTE H410M H V2 is equipped with a variety of ports, including USB 3.2 Gen 1 Type-A, USB 2.0, HDMI, and VGA. These options provide you with the versatility needed to connect all your peripherals and external devices, making it easy to build a fully functional system.
  • Realtek ALC887 Audio Codec: Experience high-quality audio with the Realtek ALC887 audio codec, delivering immersive sound for your games, movies, and music. The motherboard includes audio capacitors and a PCB design that minimizes interference, ensuring crystal-clear sound quality.
  • Enhanced Durability and Reliability: GIGABYTE motherboards are known for their durability, and the H410M H V2 is no exception. With features like solid capacitors, a durable PCB design, and anti-surge protection, you can trust that your motherboard will provide long-lasting performance and stability.

Why Choose the GIGABYTE H410M H V2 from Star Computer?

At Star Computer, we prioritize quality and performance in every product we offer. The GIGABYTE H410M H V2 Micro ATX Motherboard is an excellent choice for anyone looking to build a reliable and efficient system. Whether you’re a casual user, a gamer, or a professional, this motherboard provides the features and performance you need to get the job done.

When you purchase from Star Computer, you gain access to our knowledgeable support team, competitive pricing, and a commitment to customer satisfaction. We are here to help you find the right components for your build, ensuring a smooth and successful installation process.

Applications:

  • Gaming: The H410M H V2 offers solid performance for casual gaming and eSports titles. Pair it with an Intel Core processor and a dedicated graphics card to create a powerful gaming rig that can handle the latest titles.
  • Home Office and Productivity: This motherboard is perfect for building a reliable workstation for home office use. With support for multitasking and efficient data handling, the H410M H V2 can handle productivity applications, video conferencing, and more.
  • Multimedia and Entertainment: Build a compact media center with the H410M H V2. With its integrated graphics and high-definition audio support, you can enjoy streaming movies, playing music, and even casual gaming without the need for additional hardware.

Conclusion

The GIGABYTE H410M H V2 Micro ATX Motherboard combines reliability, performance, and expandability, making it an ideal choice for a variety of computing needs. With its support for Intel’s latest processors, dual-channel DDR4 memory, and versatile connectivity options, this motherboard offers everything you need to build a capable and efficient system.

Upgrade your PC with the GIGABYTE H410M H V2 Micro ATX Motherboard today – available now at Star Computer! Experience the perfect balance of performance and value for your next computing project.
