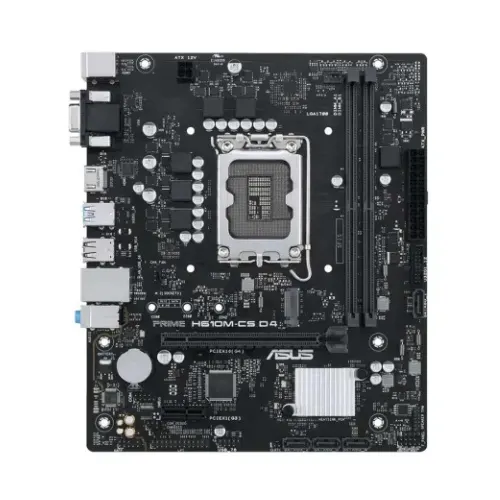

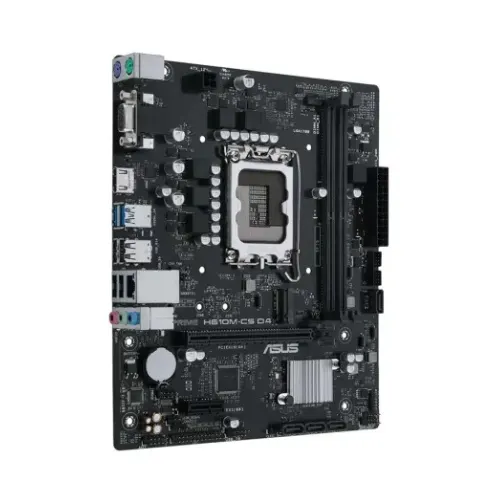

Asus PRIME H610M-CS D4 mATX Motherboard

Socket: LGA 1700
Chipset: Intel H610
Form Factor: mATX
Memory Support: 2 x DDR4 DIMM slots, up to 64GB, supports 3200MHz
Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Storage: 1 x M.2 PCIe 4.0 x4, 4 x SATA III ports
Graphics Ports: 1 x HDMI, 1 x VGA
Audio: Realtek ALC897 audio codec

Compare

Original price was: 12,000৳ .Current price is: 11,500৳ .

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* , Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H610 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Audio	Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers , Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback

Expansion Slots

PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot. , Intel H610 Chipset 1 x PCIe 3.0 x1 slot.

Memory

Memory Type	DDR4
Memory Slots	2 x DIMM
Supported Memory	3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory , Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 64GB

Graphics

Graphics	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. , 1 x HDMITM port** , 1 x VGA port , Supports 4K@60Hz as specified in HDMITM 2.1.

Connector & Ports

HDMI	1 x HDMI port
USB (s)	Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports , Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports , Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset
Audio Jack	3 x audio jacks

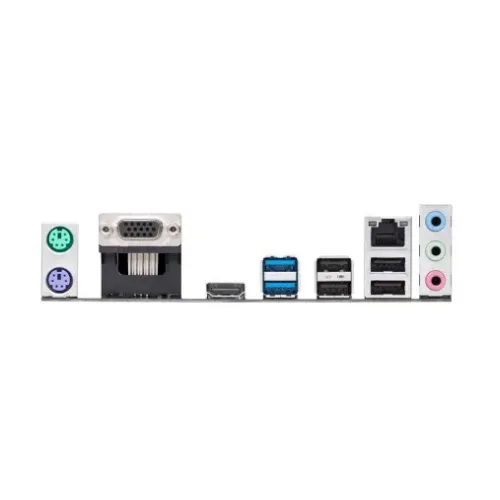

Internal I/O Ports	1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header , 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port , Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMITM port , Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header , Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) , Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector , Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports , USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Others

Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O , ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core ASUS Thermal Solution – Aluminum heatsink design , USBGuard
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z , Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty	03 years

Description

Asus PRIME H610M-CS D4 mATX Motherboard

The Asus PRIME H610M-CS D4 mATX Motherboard is engineered to unlock the full potential of 12th and 13th Gen Intel Core processors. Designed with cutting-edge technology and essential features, this motherboard is perfect for creating powerful and reliable desktop systems. With support for DDR4 memory, PCIe 4.0, and extensive connectivity options, it delivers exceptional performance for work, gaming, and everyday use.

Key Features

1. Compatible with 12th and 13th Gen Intel Core Processors

Built on the Intel H610 chipset with an LGA1700 socket, the PRIME H610M-CS D4 is ready to support the latest Intel Core, Pentium Gold, and Celeron processors. This ensures superior performance for multitasking, productivity, and entertainment applications.

2. Compact Micro-ATX Design

The mATX form factor offers a perfect balance of space efficiency and expandability. This makes it ideal for mid-sized desktop builds where versatility and performance are key.

3. DDR4 Memory Support

The motherboard supports up to 64GB of DDR4 RAM across two DIMM slots, with speeds of up to 3200MHz (O.C.). Enjoy faster data processing, smoother multitasking, and enhanced performance for memory-intensive tasks.

4. High-Speed PCIe 4.0 Expansion

With a PCIe 4.0 x16 slot, this motherboard ensures compatibility with the latest graphics cards and other expansion cards, offering double the bandwidth of PCIe 3.0 for superior data transfer rates.

5. Extensive Connectivity Options

Stay connected with a variety of ports and interfaces, including:

USB 3.2 Gen 1 and USB 2.0 ports for fast data transfer and peripheral connectivity.
HDMI and VGA outputs for multi-display support and high-resolution visuals.
M.2 slot for NVMe SSDs, enabling faster storage performance and quicker boot times.

6. Advanced Cooling and Reliability

This motherboard features optimized thermal management to ensure stable performance during demanding workloads:

Multiple fan headers supporting both PWM and DC modes for flexible cooling options.
ASUS 5X Protection III technology, including:
- Overvoltage protection for enhanced safety.
- DIGI+ VRM for stable and precise power delivery.
- Stainless steel back I/O shield for durability and corrosion resistance.

7. User-Friendly UEFI BIOS

ASUS’s UEFI BIOS provides an intuitive interface for easy system setup and tuning. Whether you’re a novice or an experienced builder, the EZ Mode and Advanced Mode make configuring your system straightforward and efficient.

Why Choose the Asus PRIME H610M-CS D4 mATX Motherboard?

The Asus PRIME H610M-CS D4 mATX Motherboard is a reliable and versatile choice for building modern desktop systems. Whether you’re a professional, a gamer, or a casual user, this motherboard delivers the performance and features you need at an excellent value.

Key Benefits:

Supports the latest Intel processors for top-tier performance.
Compact mATX design perfect for versatile desktop builds.
High-speed memory and storage support for improved responsiveness.
Durable construction with advanced cooling and protection technologies.
Comprehensive connectivity options for modern peripherals and devices.

Perfect for Work and Everyday Computing

Whether you’re building a workstation, a home PC, or an entry-level gaming rig, the Asus PRIME H610M-CS D4 mATX Motherboard provides the performance, reliability, and features you need for a seamless experience.
