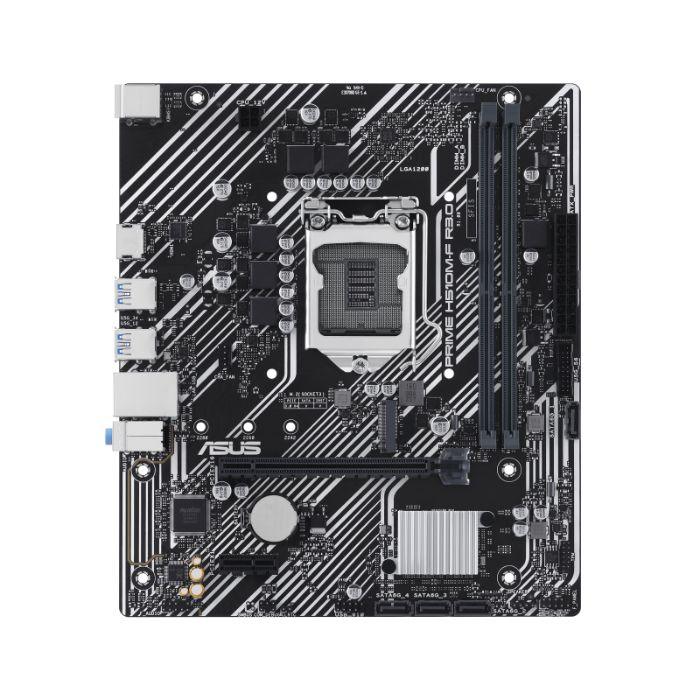

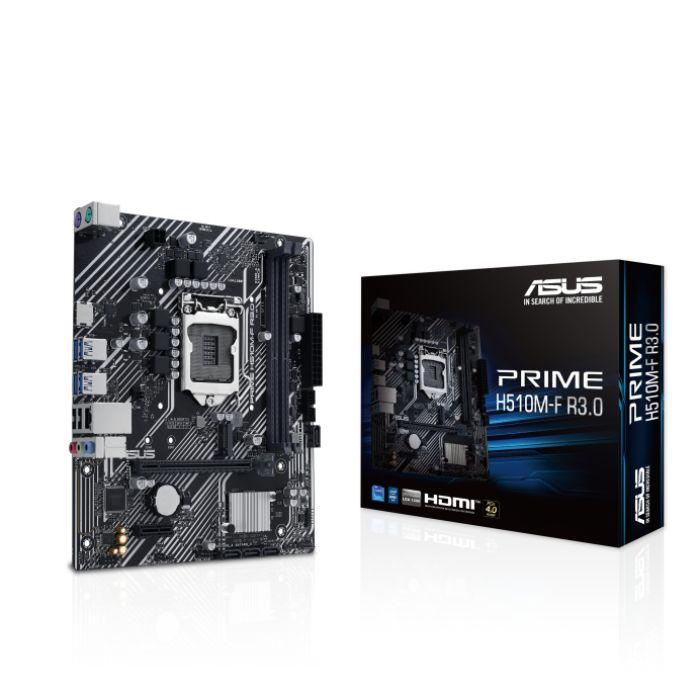

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

Model: PRIME H510M-F R3.0
Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
Features: 1 x Realtek 1Gb Ethernet

Compare

Original price was: 11,000৳ .Current price is: 10,000৳ .

Specification

Basic Information

Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors , Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 , Supports up to Intel 65W CPU Supports Intel 14 nm CPU
Chipset	Intel H470 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
Audio	Audio Features – Audio Shielding – Dedicated audio PCB layers , Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback

Expansion Slots

PCI	1 x PCIe 4.0/3.0 x16 slot – Intel 11th Gen processors support PCIe 4.0 x16 – Intel 10th Gen processors support PCIe 3.0 x16 , Intel 11th & 10th Gen Processors , Intel H470 Chipset 1 x PCIe 3.0 x1 slot

Memory

Memory Type	DDR4
Memory Slots	2 x DIMM
Supported Memory	* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. , * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. , 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* , Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB

Graphics

Graphics	Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Connector & Ports

HDMI	1x HDMI
USB (s)	Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports , Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports , Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset

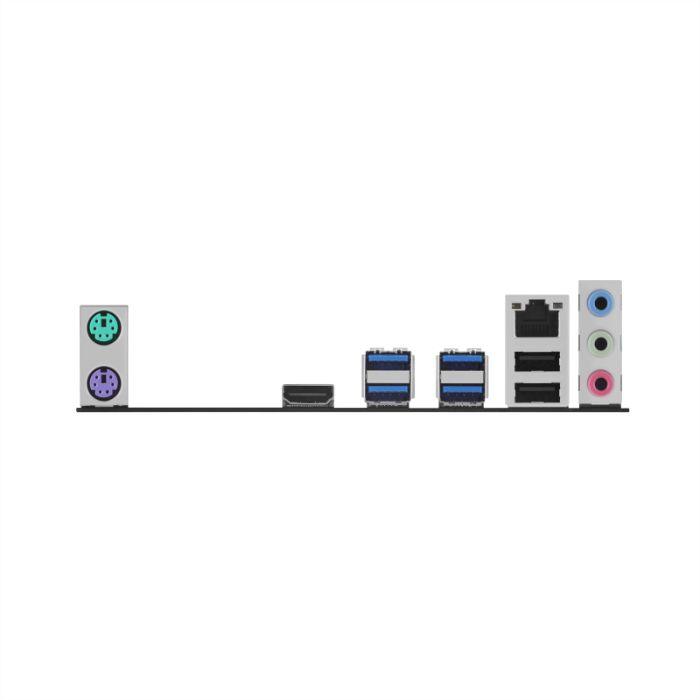

Internal I/O Ports	1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port , Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port , Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header , Internal I/O Connectors , Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header , Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector , SB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports , Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1 pin)

Others

Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O , ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot , ASUS Thermal Solution – Aluminum heatsink design
Bundled Software	ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS , ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility , ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode , TurboV EVO EPU DIGI+ VRM – EZ update

Warranty Information

Description

The ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard is a powerful and reliable foundation for building a performance-oriented computer system, specifically designed for Intel 10th and 11th Generation Core processors. Built to maximize efficiency, stability, and reliability, this motherboard is part of the ASUS Prime series, designed to harness the full potential of Intel CPUs. Equipped with an LGA1200 socket, the H510M-F R3.0 supports a broad range of CPUs, including the latest Intel i9, i7, i5, and i3 processors, as well as Pentium Gold and Celeron models, ensuring a smooth multitasking and efficient system setup for both home and office users.

This micro-ATX motherboard is loaded with features that make it a versatile choice. It includes dual DDR4 slots supporting up to 64GB of memory at 3200MHz, allowing for efficient data handling and memory-intensive application performance. The board supports PCIe 3.0 x16 and PCIe 3.0 x1 slots for graphics card and additional expansion needs, making it suitable for users who require decent gaming or content creation capabilities. The H510 chipset is optimized for budget-friendly builds that don’t compromise on essential functionality.

Storage-wise, the ASUS PRIME H510M-F R3.0 is well-equipped with an M.2 slot and four SATA 6Gb/s ports, enabling fast data transfer speeds and ample storage expansion. With onboard Realtek 1Gb Ethernet, it ensures stable, reliable, and high-speed internet connectivity for smoother streaming, downloading, and online gaming. For USB connectivity, the motherboard offers multiple ports, including USB 3.2 Gen 1 and USB 2.0, facilitating fast data transfer with external devices and accessories.

The HDMI, DVI-D, and VGA outputs allow easy setup with a wide range of displays, catering to modern and legacy monitors. Enhanced with ASUS-exclusive features like 5X Protection III and LANGuard, this motherboard is built for durability and long-term performance. Its Fan Xpert cooling technology allows for fine-tuned cooling to maintain optimal performance while minimizing noise, which is essential for those looking for a quiet system setup.

The ASUS PRIME H510M-F R3.0 is also engineered for ease of use, with BIOS Flashback™ for quick firmware updates, making it accessible to beginners and tech enthusiasts alike. Whether you’re looking to build a compact gaming system, a powerful home workstation, or a reliable office PC, the ASUS PRIME H510M-F R3.0 offers a balance of performance, stability, and value, backed by ASUS quality.

Ideal for users prioritizing reliable performance, essential connectivity, and durability, this motherboard is an excellent choice for constructing a high-performance yet affordable system.
