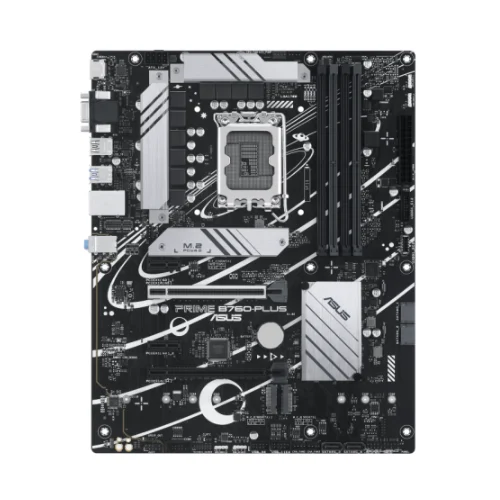

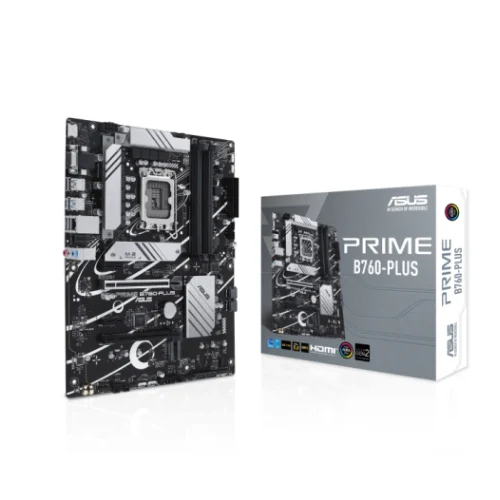

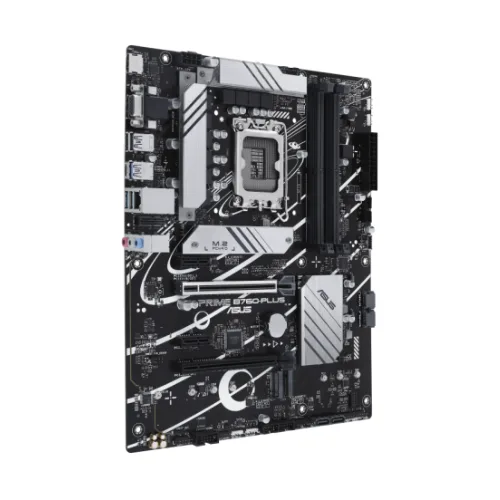

ASUS PRIME B760-PLUS ATX Motherboard

Chipset: Intel B760
CPU Support: 12th and 13th Gen Intel Core processors (LGA1700)
Memory: 4 x DDR4 DIMM slots, up to 128GB, 5333MHz (OC)
Storage: 2 x M.2 slots (NVMe PCIe 4.0), 6 x SATA 6Gbps ports
Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
Networking: Gigabit LAN

Compare

Original price was: 26,000৳ .Current price is: 23,000৳ .

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors , Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	– Audio Shielding , – Dedicated audio PCB layers , – Premium audio capacitors , – Supports up to 24-Bit/192 kHz playback / Audio Features , – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking , Realtek 7.1 Surround Sound High Definition Audio CODEC*

Expansion Slots

PCI	1 x PCIe 4.0 x16 slot (supports x4 mode) , 1 x PCIe 5.0 x16 slot , 2 x PCIe 3.0 x1 slots , Intel 13th & 12th Gen Processors , Intel B760 Chipset

Memory

Memory Type	DDR5
Memory Slots	4 x DIMM
Supported Memory	5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory , DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ , Dual Channel Memory Architecture , Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	192GB

Graphics

Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.) , 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.) , 1 x VGA port

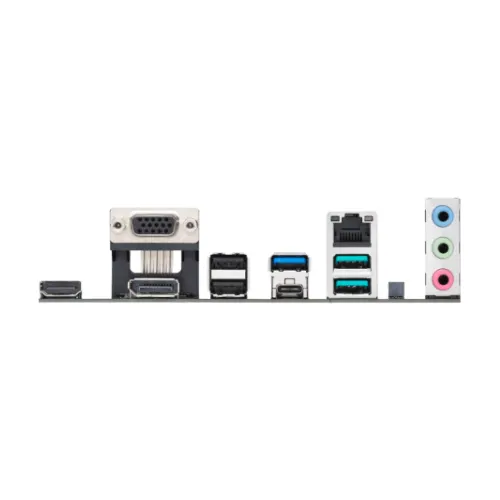

Connector & Ports

HDMI	1x HDMI
USB (s)	1 x USB 3.2 Gen 1 connector (supports USB Type-C) , 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports , 1 x USB 3.2 Gen 1 port (1 x Type-A) , 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) , 2 x USB 2.0 headers support 4 additional USB 2.0 ports , 2 x USB 2.0 ports (2 x Type-A) , 2 x USB 3.2 Gen 2 ports (2 x Type-A) , Rear USB (Total 6 ports)
LAN Port (s)	1 x Realtek 2.5Gb Ethernet port
Wireless Communication module	* Wi-Fi module is sold separately. , Vertical M.2 slot only (Key E, CNVi & PCIe)*
Supported Storage	4 x SATA 6Gb/s ports , Intel 13th & 12th Gen Processors , Intel B760 Chipset , M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) , M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) , M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) , Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Jack	3 x audio jacks
Internal I/O Ports	1 x 20-3 pin System Panel header with Chassis intrude function , 1 x 24-pin Main Power connector , 1 x 4-pin AIO Pump header , 1 x 4-pin CPU Fan header , 1 x 8-pin +12V Power connector , 1 x Aura RGB header , 1 x Clear CMOS header , 1 x COM Port header , 1 x Front Panel Audio header (AAFP) , 1 x S/PDIF Out header , 1 x Thunderbolt (USB4) header , 1 x USB 3.2 Gen 1 connector (supports USB Type-C) , 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports , 2 x USB 2.0 headers support 4 additional USB 2.0 ports , 3 x Addressable Gen 2 headers , 3 x M.2 slots (Key M) , 4 x SATA 6Gb/s ports , Fan and Cooling related , Miscellaneous , Storage related , USB
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)

Others

Special Features	– Addressable Gen 2 headers , – Aura RGB header , – DIGI+ VRM , – LANGuard , – M.2 heatsink , – Overvoltage Protection , – ProCool , – Q-DIMM , – Q-LED Core , – Q-Slot , – SafeSlot Core+ , – Stainless-Steel Back I/O , – VRM heatsink design , ASUS 5X PROTECTION III , ASUS EZ DIY , ASUS Q-Design , ASUS Thermal Solution , Aura Sync
Bundled Software	– ASUS CrashFree BIOS 3 , – ASUS EZ Flash 3 , – ASUS UEFI BIOS EZ Mode , – Aura Creator , – Aura Sync , – DIGI+ VRM , – Fan Xpert 2+ , – PC Cleaner , – Power Saving , AI Suite 3 , Armoury Crate , ASUS CPU-Z , ASUS Exclusive Software , ASUS EZ DIY , Norton 360 Deluxe (60 Days Free Trial) , UEFI BIOS , WinRAR

Warranty Information

Description

ASUS PRIME B760-PLUS ATX Motherboard – Power, Performance, and Versatility for Your Next PC Build

The ASUS PRIME B760-PLUS ATX Motherboard is designed to deliver top-tier performance and flexibility, making it the perfect choice for gamers, content creators, and professionals. Built to support the latest 12th and 13th Gen Intel Core processors, this motherboard ensures exceptional computing power for both everyday tasks and demanding applications. Featuring DDR4 memory, PCIe 4.0 support, ultra-fast storage options, and robust connectivity, the ASUS PRIME B760-PLUS offers everything you need to build a reliable, future-proof system.

Key Features of the ASUS PRIME B760-PLUS ATX Motherboard

12th and 13th Gen Intel Processor Support:
The ASUS PRIME B760-PLUS is powered by the Intel B760 chipset, offering full compatibility with Intel’s 12th and 13th Gen Core, Pentium Gold, and Celeron processors. This provides a solid foundation for both gaming and professional workstations, ensuring maximum performance and productivity.
DDR4 Memory Support:
The motherboard features 4 x DDR4 DIMM slots, supporting up to 128GB of memory with speeds of up to 5333MHz (OC). This allows you to install high-performance memory for smoother multitasking, fast load times, and seamless gaming experiences.
PCIe 4.0 for Graphics and Expansion:
With a PCIe 4.0 x16 slot, the ASUS PRIME B760-PLUS provides enhanced bandwidth for the latest graphics cards, enabling smooth gaming performance and quick rendering times in creative applications. PCIe 4.0 support ensures that your system is future-proof and ready to handle next-gen GPUs.
Dual M.2 Slots for High-Speed Storage:
The motherboard includes two M.2 slots that support NVMe SSDs, providing ultra-fast data access for quick boot times, fast file transfers, and enhanced system responsiveness. With PCIe 4.0 support, you can leverage the highest available storage speeds.
Comprehensive Cooling and Thermal Management:
The ASUS PRIME B760-PLUS features an efficient thermal design, with multiple fan headers for optimizing airflow and ensuring that your system remains cool even under heavy loads. Whether you’re gaming, streaming, or working on resource-heavy tasks, the motherboard keeps your components at ideal temperatures for stable performance.
Superior Connectivity:
- USB Ports: The motherboard includes multiple USB 3.2 Gen 1, USB 2.0, and USB Type-C ports, offering high-speed data transfer and compatibility with a wide range of peripherals.
- Networking: Equipped with Gigabit Ethernet, the motherboard ensures fast and stable internet connections for smooth online gaming, streaming, and data transfer.
- Audio: The Realtek 7.1-channel high-definition audio codec delivers clear, immersive sound quality for gaming and entertainment.
Durable and Reliable Build Quality:
As part of ASUS’s Prime series, the B760-PLUS motherboard is built with high-quality materials to ensure long-lasting durability and stability. Military-grade components provide enhanced reliability, even under the most demanding conditions.
User-Friendly BIOS and Software:
The ASUS UEFI BIOS offers a simple and intuitive interface for system customization. Additionally, the Fan Xpert 4 software gives you full control over cooling and fan speeds, allowing you to optimize performance based on system temperature.

Why Choose the ASUS PRIME B760-PLUS ATX Motherboard?

Exceptional Performance: The motherboard supports powerful Intel processors and DDR4 memory, making it perfect for gaming, content creation, and multitasking.
Future-Proof Design: PCIe 4.0, dual M.2 slots, and Intel’s latest chipset ensure that the ASUS PRIME B760-PLUS is ready for next-gen technology.
Efficient Cooling: With multiple fan headers and smart thermal management, your system stays cool under load, even during demanding tasks.
Reliable and Durable: ASUS is known for building motherboards with high-quality, military-grade components, ensuring long-lasting performance.
Versatile Connectivity: The motherboard includes a wide range of connectivity options, including USB 3.2, USB Type-C, and Gigabit LAN, making it easy to connect all your devices and peripherals.

Perfect for All Types of Builds

Gaming PCs: With PCIe 4.0 support, high-speed storage, and powerful Intel processors, the ASUS PRIME B760-PLUS motherboard delivers the performance you need for smooth gaming and immersive experiences.
Workstations: Build a professional workstation with fast memory and storage for demanding tasks like video editing, 3D rendering, and CAD applications.
Home PCs: Create a reliable and responsive home computer for everyday tasks, media consumption, and light gaming.

Buy the ASUS PRIME B760-PLUS ATX Motherboard at Star Computer

Available now at Star Computer, your destination for top-quality PC components. The ASUS PRIME B760-PLUS ATX Motherboard offers performance, reliability, and advanced features for your next build.

Order your ASUS PRIME B760-PLUS ATX Motherboard today and unlock the full potential of your next PC build!
